Specifications

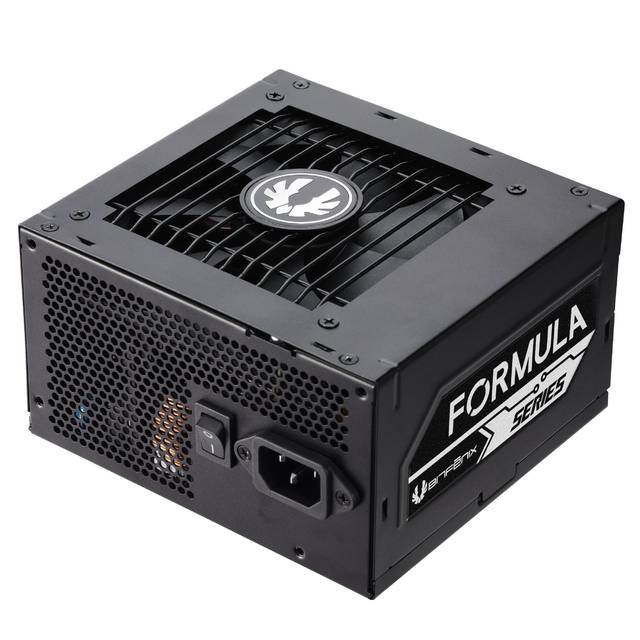

• Mfr Part Number: BP-FM450ULAG-7R
• Features:
  • High Efficiency Layout
  • Intelligent Fan-Curve
  • Industrial Quality Fan
  • Ultra Efficient
  • Environmental Friendly
  • Dedicated Multi +12V Rail
  • DC-to-DC Circuit
  • Maximum Power on +12V Rails
  • Compact Design
  • Up to 650mm Fixed Flat cable
  • High Performance Cables
  • 100% Industrial Japanese Capacitors
  • Solid Capacitors
  • Support up to Industrial workstation
  • LLC Resonant Topology
  • Industrial Level Protection
• Maximum Power: 450 W
• Input:
  • AC Input: 100-240Vac
  • Input Current: 115Vac/7.0A max. 230Vac/3.5A max
  • Frequency: 47Hz ~ 63Hz
• Type: ATX 12V V2.4

• APFC PF Value: PF > 0.99 at 115Vac input and full load
• MTBF: > 100,000hrs
• Efficiency: 80Plus Gold, up to 92%
• Fan: 1x 120mm Fan
• Output: +12V MBPH @ 25A,  +12V CPU @ 25A, +12V VGA1 @ 25A
• Connectors: 1x 24pin Main Power Connector, 1x 4+4pin CPU Power Connector, 2x 6+2pin VGA Power Connectors, 6x SATA Connectors, 2x Molex Connectors
• Protection: OPP/ OVP/ OCP/ UVP/ SCP/ NLO/ OTP/ SIP
• Safety Approvals: cTUVus, TUV, CB, CE, FCC, BSMI
• Dimensions (WxDxH): 150.0 x 140.0 x 86.0 mm
