Specifications

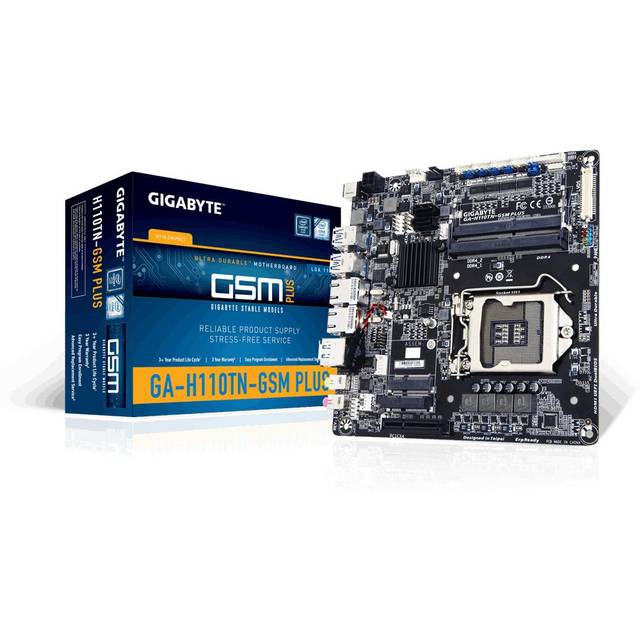

• Mfr Part Number: GA-H110TN-GSM PLUS
• CPU: LGA1151
  • Supports Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
• Chipset: Intel H110 Express
• Memory: 2x DDR4-2133 SODIMM Slots, Dual Channel, Max Capacity of 32GB
• Slots: 1x PCI-Express 3.0 x4 Slot, 2x Mini PCI-Express 2.0 Slots (one Full Size, one Half Size)
• SATA: 2x SATA3 Ports, 1x mSATA Port
• Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC
• LAN: 2x Intel Gigabit Ethernet Controllers
• Ports: 4x USB 3.0/2.0 Ports, 4x USB 2.0/1.1 Ports (via headers), 1x DisplayPort, 1x HDMI Port, 2x RJ45 LAN Ports, 2x Audio Jacks
• Power Connector: 1x 4pin ATX 12V Power Connector, 1x SATA Power Connector
• Form Factor: Mini-ITX, 17.0 x 17.0 cm
