Specifications

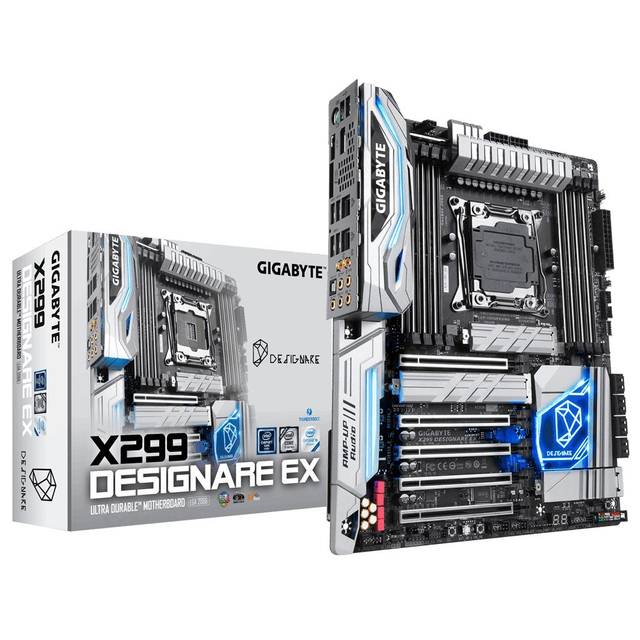

• Mfr Part Number: X299 DESIGNARE EX
• CPU: LGA2066
  • Support for Intel Core X series processors
• Chipset: Intel X299 Express
• Memory: 8x DDR4 DIMM sockets supporting up to 128 GB of system memory, 4x DDR4 DIMM sockets supporting up to 64 GB of system memory, Non-ECC, Unbuffered
• Slots: 5x PCI-Express 3.0 x16 Slots (one runs at x8, two run at x4)
• Multi-Graphics: Supports for AMD Quad-GPU/ 3-Way/ 2-Way CrossFireX and NVIDIA Quad-GPU/ 3-Way/ 2-Way SLI Technology
• Storage:
  • SATA: 8x SATA3 Ports
  • M.2: 3x M.2 Ports, one supports type 2260/ 2280 SATA and PCIe x4/x2 SSD, one supports type 2260/ 2280/ 22110 PCIe x4/x2 SSD, one supports type 2242/ 2260/ 2280 SATA and PCIe x4/x2 SSD
• Audio: Realtek ALC1220 7.1-Channel High Definition Audio CODEC
• LAN: 2x Intel Gigabit Ethernet Controllers, Dual-Band 802.11 a/b/g/n/ac Wireless LAN (2.4/5GHz), Bluetooth 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR
• Ports: 3x USB 3.1 Gen 2 Ports (2 Type-C rear, 1 Type-C via header), 8x USB 3.1 Gen 1 Ports (4 rear, 4 via headers), 6x USB 2.0/1.1 Ports (2 rear, 4 via headers), 1x PS/2 Keyboad/Mouse Port, 2x RJ45 LAN Ports, 2x DisplayPort In Ports, 2x MMCX antenna connectors (2T2R), 1x optical S/PDIF Out Connector, Audio I/O Jacks
• Power Connector: 1x 24-pin ATX Main Power Connector, 2x 8-pin ATX 12V Power Connectors
• Form Factor: ATX, 30.5 x 24.4 cm
