Specifications

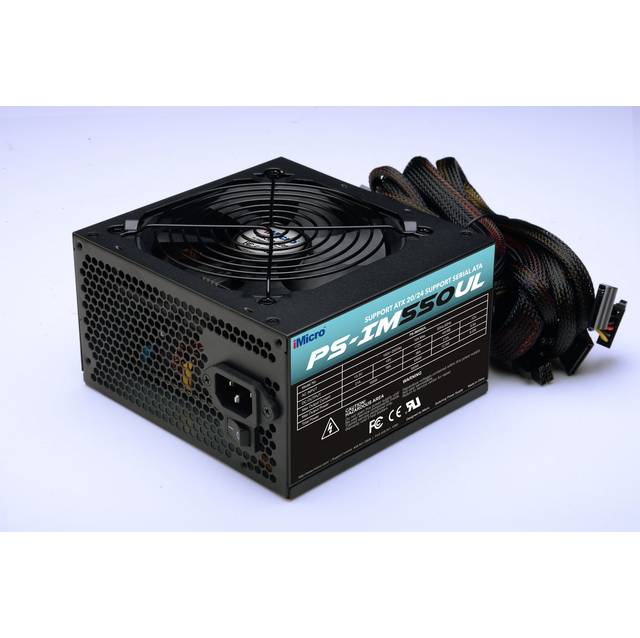

• Mfr Part Number: PS-IM550UL
• Features:
  • UL Certification
• Type: ATX 12V
• Maximum Power: 550 W
• Input:
  • Voltage: 100 ~ 240VAC
  • Frequency Range: 50 ~ 63 Hz
  • Current: <75A at 115VAC Cold Start at 25°C
• Efficiency: Min 75% at Full Load 115VAC/60Hz
• Fan: 1x 120mm Fan (100V - 240V switchover)
• Output Current: +5V @ 16A; +12V1 @ 38A; +12V2 @ 0A; +3.3V @ 21A; +5VSB @ 2.5A; -12V @ 0.5A
• OVP: +3.3V, +5V, +12V
• SCP: All Output to GND

• Turn on Time: Max 500ms
• Hold up Time: Min 16ms
• Connectors: 1x 20+4pin Main Power Connector, 1x 4+4pin EPS 12V Connector, 2x 6+2pin PCI-Express Connectors, 4x SATA Connectors, 2x Molex Connectors, 1x Floppy Connector
• Dimensions: 5.74 x 5.91 x 3.39 inch / 146.0 x 150.0 x 86.0 mm
• Weight: 3.26 lbs / 1.48 kg
