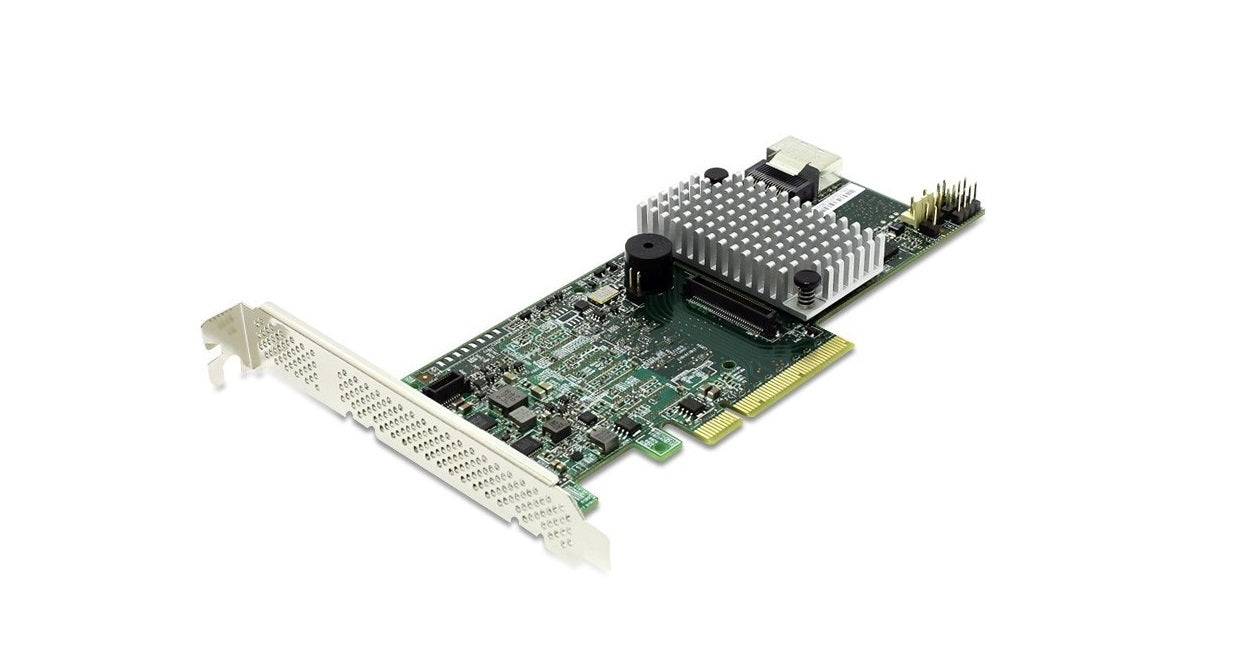

LSI Logic MegaRaid SAS 9266-4i SAS SATA Single Port PCI Express 2.0 x8 RAID Controller Kit LSI00306
$123.70
Regular price
$138.54
- Four-port 6Gb/s PCI Express 2.0 SATA+SAS RAID controller
- Second-generation 6Gb/s SATA+SAS controller, built on the LSISAS2208 dual-core ROC
- Better controller cache protection with eco-friendly, low-maintenance MegaRAID CacheVault technology
- Host Interface: PCI Express 2.0 x8
- Data Transfer Rate: Up to 600 MBps Per Port
- Interfaces: Serial Attached SCSI (SAS)
- Interfaces: Serial ATA/600
- RAID Supported: Yes
- RAID Levels: 0
- RAID Levels: 1
- RAID Levels: 5
- RAID Levels: 6
- RAID Levels: 10
- RAID Levels: 50
- RAID Levels: 60
- Data Backup Type: Battery Backup
- Standard Memory: 1 GB DDR3 SDRAM
- Ports: 1 x SFF-8087 mini 6Gb/s SAS - Mini-SAS Internal
- Height: 2.5"
- Width: 6.6"
- Form Factor: Low-profile Plug-in Card
Package includes:
SAS 9266-4i Controller, 1x SAS to 4x SATA Cable, Standard Profile Bracket, Low Profile Bracket, Software, Manual
Product may differ from image shown
Vendor: LSI
