Specifications

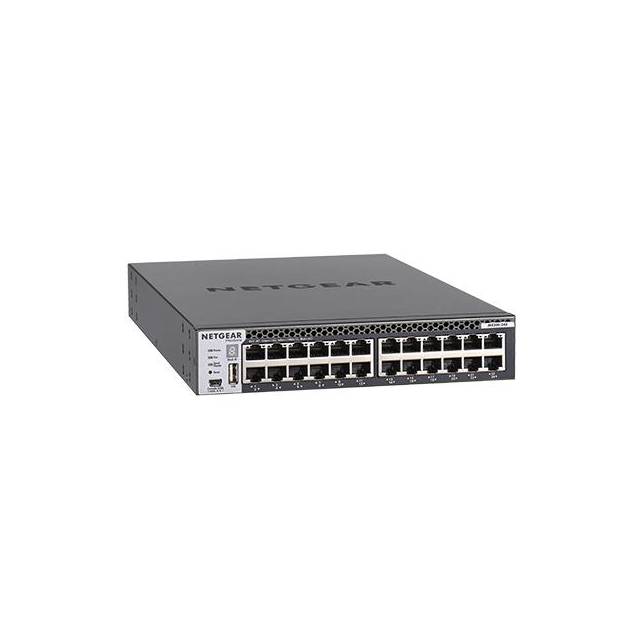

• Mfr Part Number: XSM4324CS-100NES
• Features:
  • Cost effective 1G access layer in campus LAN networks, and high performance 10G distribution layer for midsize organizations networks
  • Advanced Layer 2, Layer 3 and Layer 4 feature set - no license required - including Policy Based Routing, RIP, VRRP, OSPF and PIM
  • Innovative mixed "Spine and Leaf", 1G and 10G stacking with nonstop forwarding and hitless failover redundancy
  • Low acoustics, half-width 16-port and 24-port 10G models can be paired in a single rack space for redundant Top of Rack
  • Up to 384 (Gigabit) ports, or 384 (10 Gigabit) ports, or a combination of both in a single logical switch
  • PoE+ (30 watts per port) with hot swap, redundant power supplies and full provisioning
  • 48-port 10G models ultra-low latency and scalable table size with 128K MAC, 8K ARP/NDP, 4K VLANs, 12K routes
  • Mixed Stack of 1G and 10G models provides 16K MAC, 2K ARP/NDP, 4K VLANs and 512 routes
  • SDN-Ready OpenFlow 1.3 support for maximum investment protection
• Hardware:
  • Form Factor: Half-width 1-unit 1U 2-unit 1U rack mount
  • Switching Fabric: 480 Gps
  • Port: 24x 10GBASE-T (Fast Ethernet, 1G and 10G speeds) Ports, 4x shared SFP+ (1G and 10G speeds) Ports
  • PSU: Modular 1 bay 1 PSU included - APS250W
  • Fans: Fixed Front-to-back 37.0dB
  • Out-of-band Console:
    • Ethernet: Out-of-band 1G port (Back)
    • Console: RJ45 RS232 (Back)
    • Console: Mini-USB (Front)
    • Storage: USB (Front)
• Software:
  • Management: Out-of-band; Web GUI; HTTPs; CLI; Telnet; SSH SNMP, MIBs RSPAN, Radius Users, TACACS+
  • Usability Enhancements:
    • Stacking NSF witth Hitless Failover
    • Link Dependancy (Enable or Disable one or more ports based on the link state of one or more different ports)
    • Syslog and Packet Captures can be sent to USB storage
  • IPv4/IPv6 ACL and QoS, DiffServ:
    • Ingress/egress
    • 1 Kbps shaping Time-based
    • Single Rate Policing
  • IPv4/IPv6 Multicast Filtering:
    • IGMPv3 MLDv2 Snooping, Proxy ASM & SSM
    • IGMPv1,v2 Querier
    • Control Packet Flooding
  • IPv4 / IPv6 Policing and Convergence:
    • Auto-VoIP
    • Auto-iSCSI
    • Policy-based routing (PBR)
    • LLDP-MED
  • Spanning Tree Green Ethernet:
    • STP, MTP, RSTP
    • PV(R)STP
    • BPDU/STRG Root Guard
    • EEE (802.3az)
  • VLANs:
    • Static, Dynamic
    • Voice, MAC
    • GVRP/GMRP
    • QinQ
    • Private VLANs
  • Trunking Port Channel:
    • Distributed LAG across the stack
    • Static or Dynamic LACP
    • Seven (7) L2/L3/L4 hashing algorithms
  • IPv4/IPv6 Authentication Security:
    • Successive Tiering
    • (DOT1X; MAB; Captive Portal)
    • DHCP Snooping Dynamic ARP Inspection
    • IP Source Guard
  • IPv4/IPv6 Static Routing:
    • Port, Subnet, VLAN routing, DHCP Relay
    • Multicast static routes
    • Stateful DHCPv6 Server
  • IPv4/IPv6 Dynamic Routing:
    • IPv4: RIP, VRRP
    • IPv4/IPv6: OSPF, Proxy ARP, PIM-SM, PIM-DM, 6-to-4 tunnels
• Performance:
  • MAC & ARP/NDP: 16K MAC, 2K ARP/NDP
  • Routing/Switching Capacity: Up to 480 Gbps, All models Line-rate
  • Throughput: Up to 357 Mpps
  • Application Route Scaling: Static - 64v4/ 64v6; RIP - 512; OSPF - 512
  • Packet Buffer: 16Mb
  • Latency: <2.76 ¼s 10G RJ45; <1.83 ¼s 10G SFP+
  • IP Multicast Forwarding Entries: 96 IPv4, 32 IPv6
  • Multicast IGMP Group membership: 2K IPv4, 2K IPv6
  • CPU: CPU 800 Mhz, 1GB RAM, 256MB Flash
  • VLANs: 4K VLANs
  • DHCP: DHCP Server - 2K leases; IPv4 - 256 pools; IPv6 - 16 pools
  • sFlow: 416 samplers, 416 pollers, 8 receivers
• Power Consumption: 125 Watts
• Form Factor: Half-Width enabling one or two 10G switches in a single rack space for redundant top-of-rack; 1 modular PSU
