Specifications

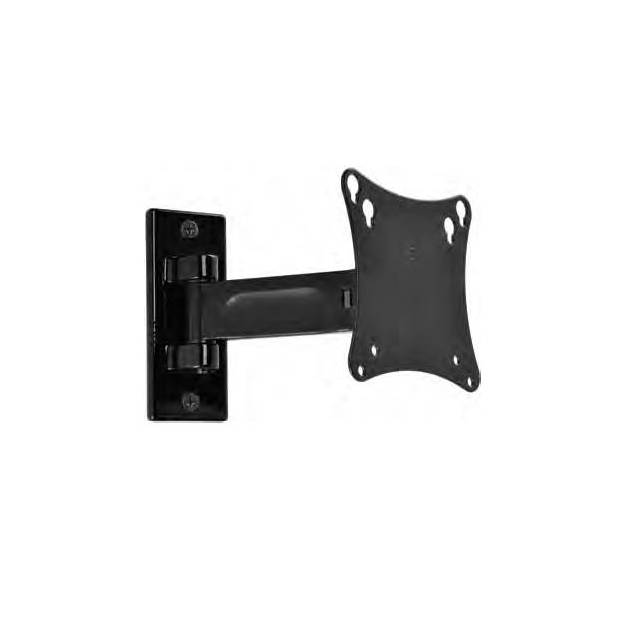

• Mfr Part Number: PP730
• Features:
  • Extends 7.01" (178mm) from the wall
  • Retracts to 2.36" (60mm) to save space
  • Integrated cable management keeps cables and cords out of the way
  • Pre-tensioned tilt mechanism offers up to ±35° of One-TouchTM tilt angle adjustment
  • ±5° of roll for post installation display leveling
  • ±90° of pivot
  • VESA 75 and 100mm compliant
  • UL listed
• Screen Size:
  • Minimum: 10"
  • Maximum: 24"
• Load Capacity: 25.0 lbs / 11.0 kg
• VESA Pattern: 75 x 75, 100 x 100 mm
• Mounting Pattern: 2.95 x 2.95, 3.94 x 3.94 inch / 75 x 75, 100 x 100 mm
• Tilt: +15 / -15
• Swivel Yaw: +90 / -90
• Roll: +5 / -5
• Distance from Wall: 2.48 - 7.13 inch / 63.0 - 181.0 mm
• Security Features: Non-Security Hardware
• Finish: Scratch Resistant Fused Epoxy
• Color: Gloss Black
• Dimensions (WxHxD): 8.13 x 5.50 x 2.36 - 7.01 inch / 207.0 x 140.0 x 60.0 - 178.0 mm
• Weight: 1.35 lbs / 0.61 kg
