Specifications

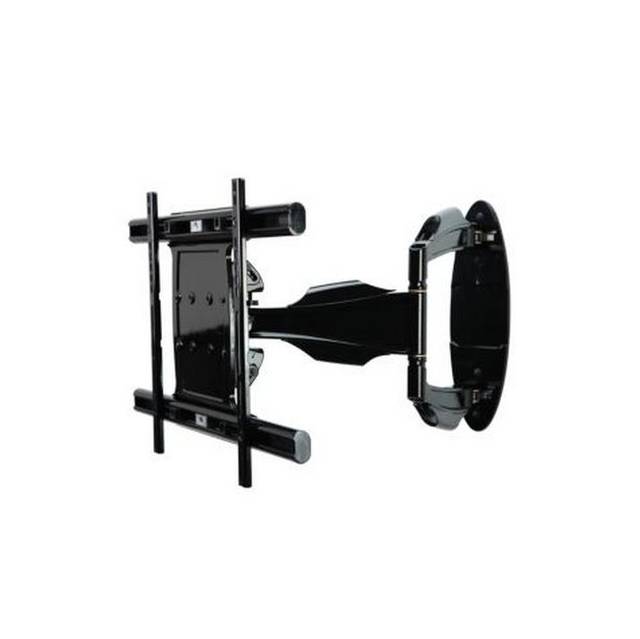

• Mfr Part Number: SA752PU
• Features:
  • Universal model SA752PU provides compatibility for 32" to 52" flat panel displays with mounting patterns up to 689 x 439mm (27.12" x 17.29")
  • Dedicated model SA752P requires display adapter to be purchased separately
  • Display can be held as close to the wall as 4.43" (112mm) or be extended as far as 27.43" (697mm)
  • Integrated cable management contains, protects and conceals cables for a clean clutter-free look
  • One-touch tilt allows for +15°/-5° without the use of tools for easy viewing angle adjustment
  • Multi-link construction allows for a full 180° range of motion
  • Display can be pivoted a full 90°
  • ±5° of roll allows for post installation leveling
  • Display can be rotated from portrait to landscape without removing the display for easy orientation changes
  • 1" (25.4mm) vertical adjustment for display position fine tuning
• Screen Size:
  • Minimum: 32"
  • Maximum: 52"
• Load Capacity: 90.0 lbs / 41.0 kg
• VESA Pattern: 600 x 400 mm
• Mounting Pattern: 27.12 x 17.29 inch / 689 x 439 mm
• Tilt: +15 / -5
• Swivel Yaw: +90 / -90
• Roll: +5 / -5
• Distance from Wall: 4.43 - 27.43 inch / 112.0 - 697.0 mm
• Security Features: Non-Security Hardware
• Finish: Scratch Resistant Fused Epoxy
• Color: Gloss Black
• Dimensions (WxHxD): 28.68 x 18.00 x 4.43 - 27.43 inch / 728.0 x 457.0 x 112.0 - 697.0 mm
• Weight: 33.0 lbs / 15.0 kg
