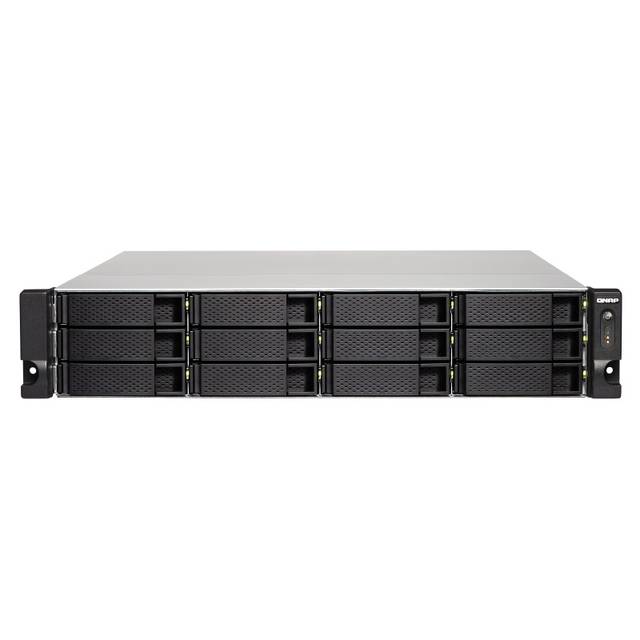

Zoom QNAP TS-1263XU-RP-4G-US AMD G-Series GX-420MC 2.0GHz/ 4GB DDR3L/ 5GbE/ 12SATA3/ USB3.0/ 12-Bay 2U Rackmount NAS for SMB

QNAP TS-1263XU-RP-4G-US AMD G-Series GX-420MC 2.0GHz/ 4GB DDR3L/ 5GbE/ 12SATA3/ USB3.0/ 12-Bay 2U Rackmount NAS for SMB

$2,519.64 $2,701.05

Specifications

  • Mfr Part Number: TS-1263XU-RP-4G-US
  • Hardware:
    • CPU: AMD G-Series GX-420MC processor (2.0GHz Clock Speed, Quad Core)
    • Encryption Acceleration: AES-NI
    • System Memory: 4GB DDR3L (1x 4GB)
    • Maximum Memory: 16GB (2x 8GB)
    • Memory Slots: 2x SO-DIMM DDR3L
    • Flash Memory: 512MB DOM
    • Drive Type: 12x 3.5" SATA 6Gb/s bays
    • Drive Compatibility: 3.5-inch SATA 6Gb/s HDD, 2.5-inch SATA 6Gb/s HDD, 2.5-inch SATA 6Gb/s SSD
    • LAN Port: 1x RJ45 10GBASE-T via a pre-installed PCIe network card, supporting 10G/5G/2.5G/1G/100M speeds, 4x RJ45 LAN Ports
    • PCIe Slot: 1x PCI-Express 2.0 x4 Slot (preinstalled with a single-port 10GBASE-T network card)
    • USB: 2x USB 3.0 Ports, 2x USB 2.0 Ports
    • LED Indicator: HDD 1-12, Status, USB, LAN
    • Audio: Alarm buzzer
    • Button: Power, Reset
    • System Warning: Voice prompts
    • Sound Level: Sound pressure (LpAm) - 39.2 dB(A)
    • Operating System: QTS 4.3.4 (embedded Linux)
  • Network & Virtual Switch:
    • TCP/IP - Dual stack (IPv4 and IPv6)
    • Jumbo frame (failover, multi-IP settings, port trunking/NIC teaming)
    • DHCP server and client
    • USB Wi-Fi adapter
    • Virtual switch
      • Virtual switch editing in Virtualization Station
      • Combining virtual machines and containers in the same virtual switch
      • Network Address Translation (NAT)
      • Spanning Tree Protocol (STP)
    • WirelessAP Station
  • Security:
    • Network access protection with auto-blocking (SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP)
    • Host access control for shared folders (CIFS/SMB)
    • 140-2 validated AES 256-bit volume-based and shared folder data encryption (FIPS)
    • 256-bit external drive encryption (AES)
    • Importing of SSL certificates from Let ™s Encrypt
    • Instant alerts through email, SMS, push service, audio, and LCD panel
    • 2-step verification
  • Storage Management:
    • Storage space utilization monitoring
    • Flexible volumes and LUNs with thin provisioning and space reclaiming
    • Supported RAID types: RAID 0, 1, 5, 6, 10, 50, 60, JBOD, Single
    • RAID hot spare and global hot spare
    • RAID rebuild speed customization
    • Advanced secure data erase
    • Storage pools
    • Qtier Technology (automated storage tiering)
      • Automatic or scheduled data tiering
      • IO-aware auto tiering
      • Shared folder tiering on demand
    • Snapshots
      • Volume and LUN snapshots
      • Snapshot Dashboard
      • Snapshot Manager
      • Snapshot cloning
      • Snapshot Vault
      • Snapshot Replica
      • Unified Snapshot Directory
      • Support for Windows Previous Versions (CIFS/SMB)
      • Snapshot Agent for Microsoft Windows and VMware vSphere
    • Online volume expansion
    • Online storage pool expansion
    • Online RAID capacity expansion
    • Online RAID level migration
    • SMART data migration
    • Storage expansion using QNAP expansion units
    • JBOD enclosure roaming
    • SSD read-only or read-write cache
    • Bad block scan and hard drive S.M.A.R.T test
    • Bad block recovery and RAID recovery
    • Bitmap support
  • File System:
    • Internal HDD: EXT4
    • External HDD: EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT
  • Form Factor: 2U Rackmount
  • Fan: 2x 7cm smart fan (12V DC)
  • Power Consumption:
    • HDD Sleep Mode: 57.15 (w/ 10GbE NIC)
    • In Operation: 143.17 (w/ 10GbE NIC)
  • Power Supply Unit: 2x 300W, 100-240V
  • Dimensions (WxDxH): 18.98 x 21.02 x 3.50 inch / 482.0 x 534.0 x 89.0 mm
  • Weight: 28.88 lbs / 13.10 kg
