Specifications

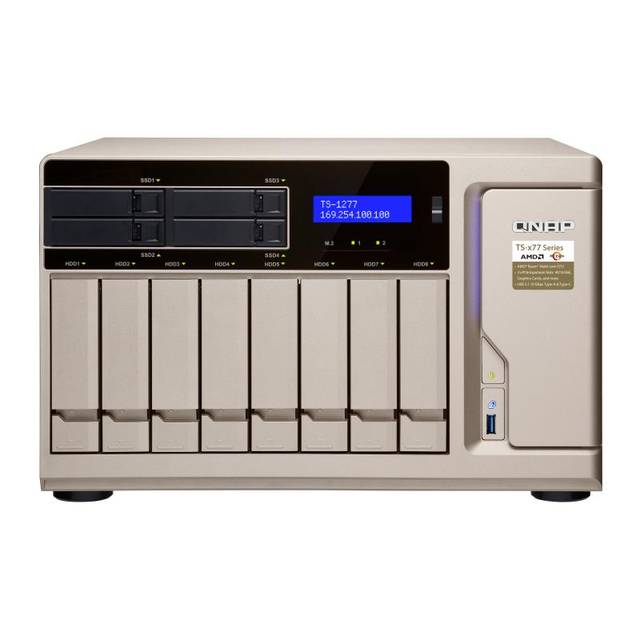

• Mfr Part Number: TS-1277-1700-64G-US
• Hardware:
  • CPU: AMD Ryzen 7 1700 processor (3.0GHz Clock Speed, 3.7GHz Max Turbo, 8-Core)
  • System Memory: 64GB DDR4 (4x 16GB)
  • Maximum Memory: 64GB (4x 16GB)
  • Memory Slots: 4x UDIMM DDR4
  • Flash Memory: 512MB DOM
  • Drive Bay: 8x 3.5-inch SATA 6 Gbps bays, 4x 2.5-inch SATA 6 Gbps bays
  • M.2 SSD Slot: 2x M.2 2240/2260/2280/22110 SATA 6Gb/s SSDs
  • LAN Port: 4x Gigabit RJ45 LAN Ports
  • PCIe Slot: 1x PCI-Express 3.0 x8 Slot, 1x PCI-Express 3.0 x4 Slot, 1x PCI-Express 2.0 x4 Slot
  • USB: 2x USB 3.1 10 Gbps Ports (1 Type-C rear, 1Type-A rear), 6x USB 3.0 Ports (1 front, 5 rear)
  • Audio: 2x 3.5 mm dynamic microphone jacks, 1x 3.5 mm line-out jack, 2x speakers
  • Display Panel: Monochrome backlit LCD display with Enter and Select buttons
  • Security Slot: Kensington security slot
  • Operating System: QTS 4.3 (embedded Linux)
• Networking:
  • TCP/IP: Dual stack (IPv4 and IPv6)
  • Jumbo frame (failover, multi-IP settings, port trunking, and NIC teaming)
  • Service binding based on network interfaces
  • Squid web caching proxy
  • Proxy client
  • DHCP server and client
  • Protocols: CIFS/SMB, AFP v3.3, NFS v3, FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC
  • UPnP and Bonjour Discovery
  • USB Wi-Fi adapter
  • RADIUS Server
• Security:
  • Network access protection with auto-blocking (SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP)
  • Host access control for shared folders (CIFS)
  • 140-2 validated AES 256-bit volume-based and shared folder data encryption (FIPS)
  • 256-bit external drive encryption (AES)
  • Importing of SSL certificates from Let's Encrypt
  • Instant alerts through email, SMS, push service, audio, and LCD panel
  • 2-step verification
• Storage Management:
  • Storage space utilization monitoring
  • Flexible volumes and LUNs with thin provisioning and space reclaiming
  • Disk volume types: RAID 0,1, 5, 6, 10, 50, 60, JBOD, single
  • RAID hot spare and global hot spare
  • Storage pools
  • Qtier Technology (automated storage tiering)
  • Volume and LUN snapshots
    • Snapshot Manager
    • Snapshot cloning
    • Snapshot Vault
    • Snapshot Replica
    • Unify Snapshot Directory
    • Support for previous Windows versions (SMB)
    • Snapshot Agent for Microsoft Windows and VMware vSphere
  • Online volume expansion
  • Online storage pool expansion
  • Online RAID capacity expansion and online RAID level migration
  • SMART data migration
  • Storage expansion through QNAP expansion units
  • JBOD enclosure roaming
  • SSD read-only or read-write cache
  • Bad block scan and hard drive S.M.A.R.T.
  • Bad block recovery and RAID recovery
  • Bitmap support
• File System:
  • Internal HDD: EXT4
  • External HDD: EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT
• Form Factor: Tower
• Fan: 3x 80 mm System Fans, 2x 90 mm CPU Fans
• Power Suply Unit: 550W, 100-240V AC, 50/60Hz
• Dimensions (WxDxH): 14.56 x 12.59 x 9.23 inch / 369.9 x 319.8 x 234.6 mm
• Weight: 25.46 lbs / 11.55 kg
