Specifications

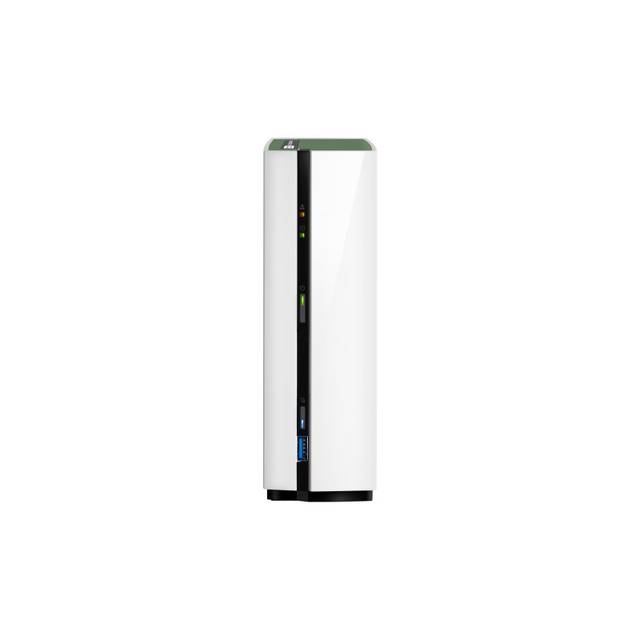

• Mfr Part Number: TS-128A-US
• Hardware:
  • CPU Realtek RTD1295 quad-core 1.4GHz processor
  • CPU Architecture 64-bit ARM
  • System Memory 1 GB DDR4, not expandable
  • Maximum Memory 1 GB DDR4, not expandable
  • Flash Memory 4 GB (Dual boot OS protection)
  • Drive Bay 1 x 3.5 inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility 3.5-inch bays: 3.5-inch SATA hard disk drives
  • Gigabit Ethernet Port (RJ45) 1
  • USB 2.0 port 2
  • USB 3.0 port 1
  • Form Factor Tower
  • LED Indicators System Status, LAN, USB, HDD1~2
  • Buttons Power, Reset, USB Copy
• Networking&Virtual Switch
  • TCP/IP: Dual stack (IPv4 and IPv6)

  • Jumbo frame

  • DHCP server and client

  • USB Wi-Fi adapter

    • Note: This feature does not support ad hoc networks because of safety considerations.

  • WirelessAP Station
  • Virtual switch

    • Combining containers in the same virtual switch

    • Network Address Translation (NAT)

    • Spanning Tree Protocol (STP)
• Security:
  • Network access protection with auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP

  • CIFS host access control for shared folders

  • FIPS 140-2 validated AES 256-bit volume-based data encryption*

  • AES 256-bit external drive encryption

  • Importable SSL certi cates

  • Instant alert via E-mail, SMS, beep,and push service

  • 2-step veri cation

  • Data encryption functions may be unavailable in accordance with the legislative restrictions of some countries.
• Storage Management:
  • Storage space utilization monitoring

  • Flexible volumes and LUNs with thin provisioning and space reclaiming

  • Disk volume types
    • 1-bay: single

    • RAID hot spare and global hot spare

    • RAID rebuild speed customization

    • Advanced secure data erase
  • Storage pools
  • Snapshots
    • Volume and LUN snapshots

    • Snapshot Dashboard

    • Snapshot Manager

    • Snapshot Cloning Snapshot Vault

    • Snapshot Replica

    • Unify Snapshot Directory

    • Support for Windows previous versions (CIFS/SMB)

    • Snapshot Agent for Microsoft Windows and VMware vSphere

    • Max. 16 snapshots per volume/block-based LUN; max. 32 snapshots per NAS
  • Online volume expansion

  • Online storage pool expansion

  • Online RAID capacity expansion and online RAID level migration

  • SMART data migration

  • Bad block scan and hard drive S.M.A.R.T.

  • Bad block recovery and RAID recovery

  • Bitmap support
• File System:
  • Internal Hard Drive: EXT4
  • External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+
• Form Factor: Tower
• Fan: 1 x 7612 cooling blower for system
• Power Supply: External, 36 W, AC 100 to 240 V
• Power Consumption:
  • HDD SleepMode: 3.09W
  • In Operation: 7.12W
• Dimensions (WxDxH): 2.36x4.92  x 7.39 inch /
• Weight: 1.23 lbs
