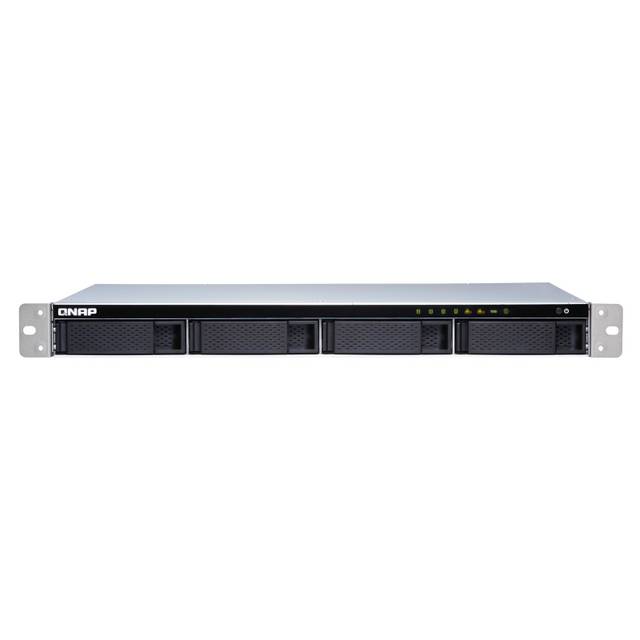

QNAP TS-431XEU-2G-US Alpine AL-314 1.7GHz/ 2GB DDR3/ 3GbE/ 4SATA3/ USB3.0/ 4-Bay 1U Rackmount NAS for SMB
$659.20
Regular price
$706.66
Specifications
-
Mfr Part Number: TS-431XEU-2G-US
-
Hardware:
- CPU: Alpine AL-314 Processor (1.7GHz, Quad-core)
-
Hardware Encryption Accleration
-
System Memory: 1x 2GB SODIMM DDR3-1600
-
Flash Memory: 512MB
-
Hard Drive: 4x 3.5"/2.5" SATA 6Gb/s HDDs/ SSDs
-
LAN Port: 1x 10 Gigabit SFP+ LAN Ports, 2x Gigabit RJ45 LAN Ports
-
USB: 4x USB 3.0 Ports
-
LED: HDD1, HDD2, HDD3, HDD4, LAN1, LAN2, 10GbE, STATUS
-
Button: Power, Reset
-
System Warning: Buzzer
-
Noise Level: Sound Level - 20.3 dB(A)
-
Operating System: QTS 4.3 (embedded Linux)
-
Networking:
- TCP/IP (IPv4 & IPv6: Dual Stack)
- Jumbo frame (failover, multi-IP settings, port trunking, and NIC teaming)
- Service binding based on network interfaces
- Squid web caching proxy
- Proxy client
- DHCP server and client
- Protocols: CIFS/SMB, AFP v3.3, NFS v3, FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC
- UPnP & Bonjour Discovery
- USB Wi-Fi Adapter Support
- TCP/IP (IPv4 & IPv6: Dual Stack)
-
Security:
- Network access protection with auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
- CIFS host access control for shared folders
- FIPS 140-2 validated AES 256-bit volume-based and shared folder data encryption
- AES 256-bit external drive encryption
- Importing of SSL certificates from Let ™s Encrypt
- Instant alerts through email, SMS, push service
- 2-step verification
-
Storage Management:
- Storage space utilization monitoring
- Flexible volumes and LUNs with thin provisioning and space reclaiming
- Disk volume types
- RAID 0,1, 5, 6, 10, JBOD, single
- RAID hot spare and global hot spare
- Storage pools
- Supports snapshots
- Supports Volume/LUN snapshot
- Snapshot manager
- Snapshot clone
- Snapshot vault
- Snapshot replica
- Snapshot agent for Microsoft Windows and VMware vSphere
- Online volume expansion
- Online storage pool expansion
- Online RAID capacity expansion and online RAID level migration
- SMART data migration
- Storage expansion through QNAP expansion units (UX-500P and UX-800P)
- JBOD enclosure roaming
- SSD read-only or read-write cache
- Bad block scan and hard drive S.M.A.R.T.
- Bad block recovery and RAID recovery
- Bitmap support
-
File System:
-
Internal HDD: EXT4
- External HDD: EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT
-
Internal HDD: EXT4
- Form Factor: 1U
- Fan: 3x 4cm System Fan (12V DC)
-
Power Supply: 100W, 100-240V AC, 50-60Hz, open frame
-
Power Consumption:
-
HDD Standby: 12.42W
- In Operation: 30.99W (with 4x 2TB HDD installed)
-
HDD Standby: 12.42W
- Dimensions (WxDxH): 439.0 x 291.0 x 44.0 mm
-
Weight: 4.15 kg
Vendor: QNAP
