Specifications

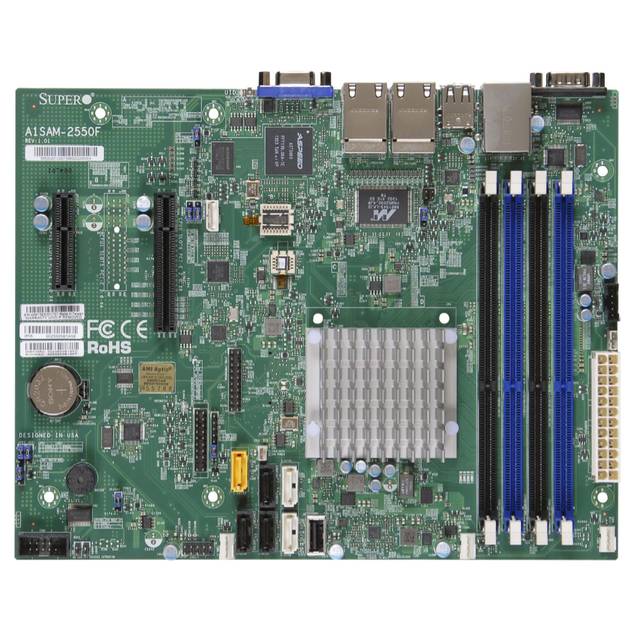

• Mfr Part Number: A1SAM-2550F-B
• CPU (Included): Intel Atom C2550 Processor; Supports up to 14W TDP (Quad-Core)
• Chipset: System-on-Chip
• Memory: 4x 240pin DDR3-1600/1333 DIMM Slots, ECC, non-ECC, Unbuffered, Max Capacity of 64GB
• Slots: 1x PCI-Express 2.0 x8 Slot, 1x PCI-Express 2.0 x4 Slot
• SATA: 2x SATA3 Ports, 4x SATA2 Ports
• Video: Aspeed AST2400 BMC Graphics
• LAN: C2000 SoC I354 Quad Gigabit Ethernet Controllers
• Ports: 7x USB 2.0 Ports (4 rear, 2 via header, 1 Type A), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 4x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: MicroATX, 9.6 x 7.5 inch / 24.40 x 19.05 cm
• Intel Atom C2550 is included with this motherboard.
• RoHS Complaint
