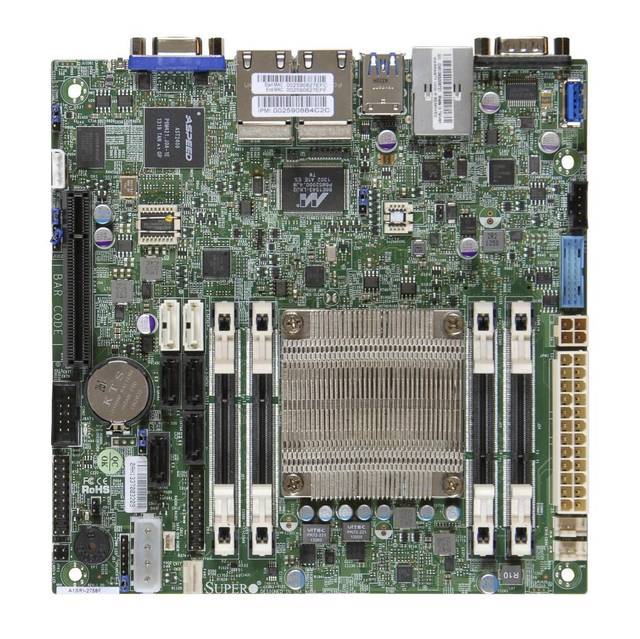

Zoom Supermicro A1SRI-2758F-B Intel Atom C2758/ DDR3/ SATA3&USB3.0/ V&4GbE/ Mini-ITX Motherboard & CPU Combo

Supermicro A1SRI-2758F-B Intel Atom C2758/ DDR3/ SATA3&USB3.0/ V&4GbE/ Mini-ITX Motherboard & CPU Combo

$410.00 Regular price $439.52

Specifications

  • Mfr Part Number: A1SRI-2758F-B
  • CPU (Included): Intel Atom C2758 Processor; Supports up to 20W TDP (Eight-Core)
  • Chipset: System-on-Chip
  • Memory: 4x 204pin DDR3-1600/1333 SODIMM Slots, ECC, Max Capacity of 32GB
  • Slots: 1x PCI-Express 2.0 x8 Slot
  • SATA: 2x SATA3 Ports, 4x SATA2 Ports
  • Video: Aspeed AST2400 Graphics
  • LAN: SoC Quad Gigabit Ethernet Controller w/ Marvell Alaska 88E1543; 1x Realtek 8211E-PHY for Dedicated Management GLAN
  • Ports: 4x USB 3.0 Ports (2 rear, 1 Type A, 1 via header), 2x USB 2.0 Ports, 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 4x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
  • Form Factor: Mini-ITX, 6.75 x 6.75 inch / 17.145 x 17.145 cm
  • Intel Atom C2758 is included with this motherboard.
  • RoHS Complaint

Vendor: Supermicro
