Specifications

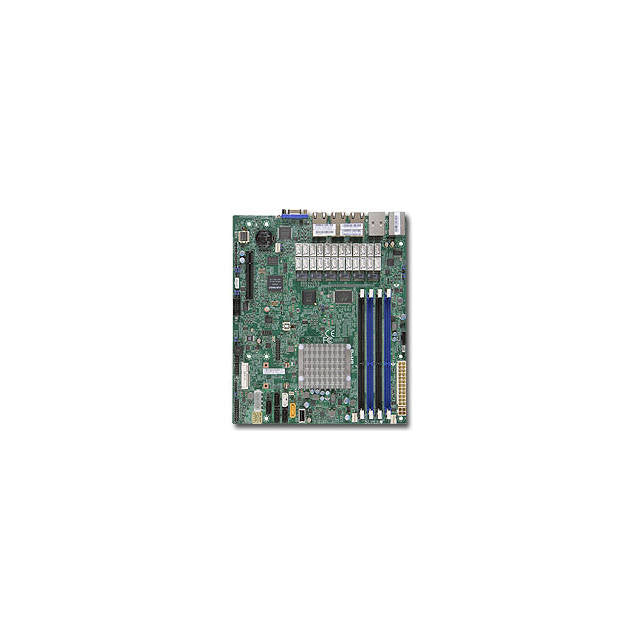

• Mfr Part Number: A1SRM-LN7F-2758-B
• CPU (Included): Intel Atom C2758 Processor; Supports up to 20W TDP (Eight-Core)
• Chipset: System-on-Chip
• Memory: 4x 240pin DDR3-1600/ 1333 UDIMM Slots, ECC/Non-ECC, Max Capacity of 64GB
• Slots: 1x PCI-Express 2.0 x8 Slot (runs at x4)
• SATA: 2x SATA3 Ports, 4x SATA2 Ports
• Video: Aspeed AST2400 BMC Graphics
• LAN: Intel C2000 SoC i354 Quad Gigabit Ethernet Controller & Intel I210-AT Gigabit Ethernet Controller & Intel i350-AM2 Dual Gigabit Ethernet Controller
• Ports: 7x USB 2.0 Ports (4 rear, 2 via header, 1 Type A), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 7x RJ45 LAN Ports
• Form Factor: MicroATX, 9.6 x 8.0 inch / 24.38 x 20.32 cm
• Intel Atom C2758 is included with this motherboard.
• RoHS Complaint
