Specifications

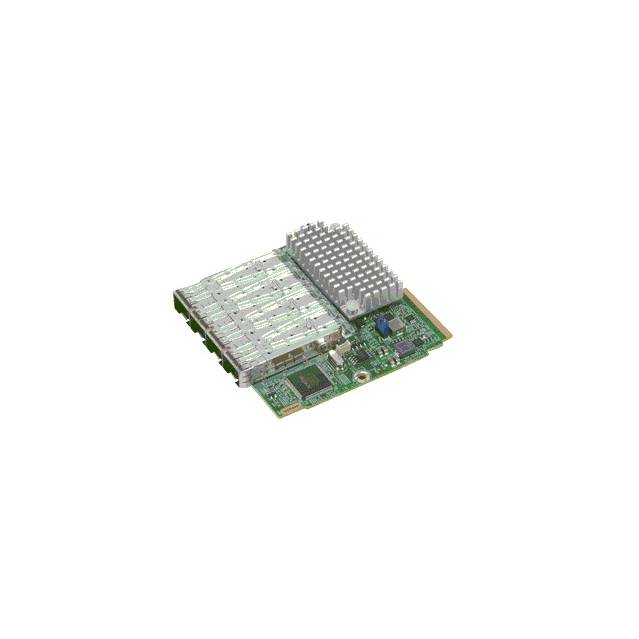

• Mfr Part Number: AOC-MTG-I4SM
• Features:
  • Quad SFP+ Connectors
  • Super I/O Module (SIOM) Form Factor
  • Network Virtualization Offloads including VXLAN and NVGRE
  • Small Packet Performance
  • Data Plane Developer Kit for efficient packet processing
  • Low Power Consumption
  • Intel Flow Director
  • Intelligent Offloads
  • Unified networking providing a single wire support for LAN and storage
  • Asset Management Features
  • NC-SI for Remote Management
  • RoHS compliant 6/6
  • Supports Both Direct Attach Copper and Fiber Cables
• General:
  • Intel X710 controller
  • Super I/O Module (SIOM) Form Factor
  • Quad SFP+ connectors with speed up to 10Gbps per port
  • Load balancing on multiple CPUs
  • Intel PROSet Utility for Windows Device Manager
  • Time Sync (IEEE 1588)
  • Energy Efficient Ethernet (EEE)
• Virtualization Features:
  • Next-Generation VMDq with up to 256 VMDq VMs supported
  • PCI-SIG SR-IOV with up to 128 virtual ports
  • Virtual Machine Load Balancing (VMLB)
  • Advanced Packet Filtering
  • VLAN support for up to 4096 VLAN tags
  • VXLAN and NVGRE support
• Storage Interface Features:
  • Preboot eXecution Environment (PXE) support
  • iSCSI remote boot
  • Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) static counters
• Management Features:
  • Asset Management support on Supermicro platforms
  • Controller asset tags such as part number, revision, serial number, and MAC addresses
  • Controller thermal sensor
  • NC-SI for remote management
• Advanced Software Features:
  • Teaming support
  • IEEE 802.3ad (link aggregation control protocol)
  • IEEE 802.1Q VLANs
  • IEEE 802.3 2005 flow control support
  • TCP segmentation/large send offload
  • Interrupt moderation
• OS Support:
  • Windows Server 2012 R2, 2012, 2008 R2 X86-64
  • Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64
  • Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64
  • FreeBSD 9 and 10 IA-32, X86-64, and IA-64
  • UEFI 2.1 and 2.3 X86-64 and I-64
  • VMware ESXi 5.1, ESXi 5.5 and ESXi 6.0 X86-64
• Cables Support:
  • SFP+ direct attach twinaxial copper cables up to 7m
  • Fiber-optic cables (with required optional SFP+ transceivers)
• Power Consumption:
  • Typical Power Consumption: 4W
  • Maximum Power Consumption: 7W
• Physical Dimensions:
  • Card PCB Dimensions (WxD): 3.62 x 3.43 inch / 92.0 x 87.1 mm
• RoHS Compliant
