Specifications

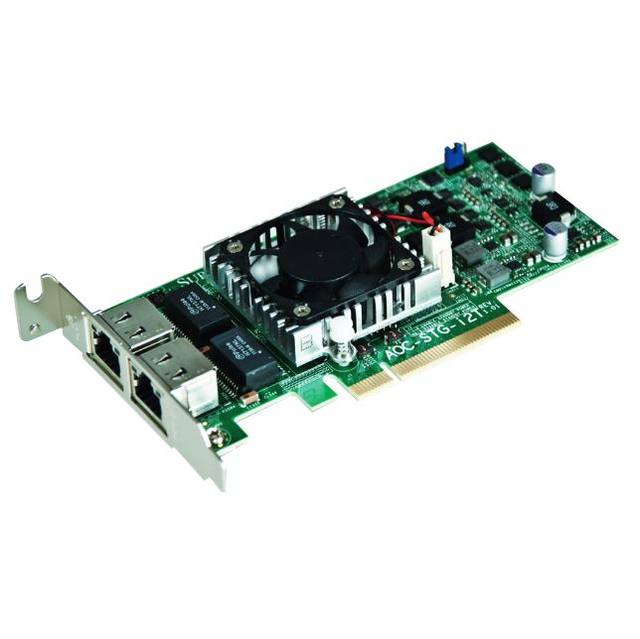

• Mfr Part Number: AOC-STG-I2T
• Features:
  • Dual RJ45 Connectors
  • Low-Profile, Short Length Standard Form Factor
  • PCI Express 2.1 (2.5GT/s or 5GT/s)
  • Intel QuickData Technology
  • VMDq, Next-Generation VMDq, and PC-SIG SR-IOV for Virtualized Environments
  • Jumbo Frames Support up to 15.5KB
  • Load Balancing on Multiple CPUs
  • iSCSI Remote Boot Support
  • Fibre Channel over Ethernet (FCoE)
  • Support the most popular Network Operating Systems (NOSs)
  • Support RJ-45 Category-6 or 6A
• General:
  • Intel X540 10GbE controller with integrated 10GBase-T copper PHYs
  • Compact size low-profile standard form factor
  • PCI-Express 2.1 x8 (2.5GT/s or 5GT/s) interface
  • Dual RJ-45 connectors with speed up to 10Gb/port
  • Load balancing on multiple CPUs
  • Intel PROSet Utility for Windows Device Manager
• I/O Features:
  • Intel QuickData Technology - DMA engine that enhances data acceleration and lowers CPU usage
  • Support jumbo frames of up to 15.5KB
  • Support 802.1q VLAN
  • Two integrated independent 10GBase-T interfaces operate at 10GBase-T (10Gb/s) and 1000Base-T (1Gb/s) modes
  • Direct Cache Access (DCA) to avoid cache misses
  • MSI-X support to minimize interrupt overhead of and allow load-balancing between multiple cores/CPUs
  • Receive and Transmit Side Scaling for Windows environment and Scalable I/O for Linux environments
• Performance Features:
  • TCP/UDP Segmentation Offload
  • IPv6 Support for IP/TCP and IP/UDP Receive Checksum Offload
  • Supports Fibre Channel over Ethernet (FCoE)
  • Low latency interrupts
  • DCA support
• Virtualization Features:
  • Support for Virtual Machine Device Queues (VMDq and Next-generation VMDq)
  • L2 Ethernet MAC address and VLAN filters
  • PC-SIG SR-IOV implementation
  • Advanced Packet Filtering
  • VLAN support to allow creation of multiple VLAN segments
• Manageability Features:
  • Preboot eXecuation Environment (PXE) support
  • Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) statistics counters
  • iSCSI remote boot
• OS Support:
  • Windows Server 2008 R2 SP1, 7 SP1, Server 2008 SP2, Vista SP2, Server 2003 R2, 2003 SP2, 2008 SP2
  • Linix Kernel version 3.1.x & 2.6.X
  • FreeBSD 8
• Cables Support:
  • RJ-45 Category-6 up to 55m; Category-6A up to 100m
• Power Consumption: About 13W
• Supported Platforms:
  • Motherboards with minimum PCI-E x8 slot
  • Server Systems with low-profile or full-height PCI-E x8 expansion slot
• Dimensions (WxL):
  • Card PCB (LxH): 2.50 x 5.37 inch / 6.35 x 13.65 cm
  • Height of End Brackets: Standard - 4.725 inch / 12.0 cm; Low-profile - 3.13 inch / 7.94 cm
• RoHS Compliant
