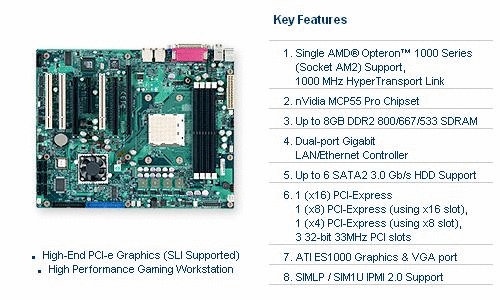

Supermicro H8SMi-2-O Opteron 1000/ nVidia MCP55 Pro/ DDR2-800/ RAID/ SLI/ ATX Server Motherboard
$96.56
Regular price
$103.52
Specifications
- Mfr Part Number: H8SMI-2-O
- CPU: Socket AM2 Support AMD Dual-Core Opteron 1000 Series Processor; FSB 1000MHz HT Speed
- Chipset: nVidia MCP55 Pro
- Memory: 4x 240pin DDR2-800/667/533 DIMMs, Dual Channel, Un-buffered ECC/Non-ECC, Max Capacity 8GB
- Slots: 2x PCI-Express x16 Slot (Support nVidia SLI Technology, One runs on x8); 1x PCI-Express x8 Slot (Runs on x4); 3x 32-bit 33MHz PCI Slots
- IDE/SATA: 1x ATA-133 Channel; 6x SATA2 Ports, Support RAID 0, 1, 0+1, 5, JBOD
- Video: ATI ES1000 Graphics Controller
- LAN: nVidia MCP55 Pro Chipset Dual-Port Gigabit Ethernet Controller
- Ports: 6x USB 2.0 Ports (2 rear, 4 by headers); 2x PS/2 Ports; 2x Serial Ports (1 rear, 1 by header); 1x Parallel Port; 1x VGA Port; 2x RJ45 LAN Ports
- Power Connector: 1x 24pin Main Power; 1x 4pin CPU Power
- Form Factor: ATX, 12 x 9.6 inch / 30.5 x 24.4 cm
- Package: Retail
- RoHS Compliant
- To ensure system stability, a 300W (minimum) ATX power supply is required
Vendor: Supermicro
