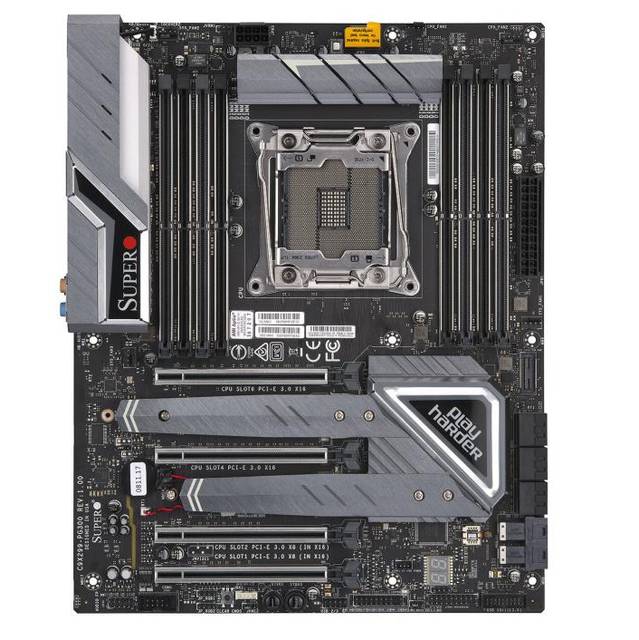

Specifications

• Mfr Part Number: MBD-C9X299-PG300-O

• CPU: LGA2066
  • Supports Intel Core i7 X-series Processor

  • Supports Intel Core i9 Extreme X-series Processor
  • Supports Intel Core i9 X-series Processor
  • Support up to 165W TDP

• Chipset: Intel X299

• Memory: 8x 288pin DDR4-2666/ 2400/ 2133/ 1866/ 1600 MHz DIMM Slots, Non-ECC, Unbuffered, Max Capacity of 128GB
• Slots: 4x PCI-Express 3.0 x16 Slots

• SATA: 6x SATA3 Ports, Supports RAID 0, 1, 5, 10
• Video: N/A
• Audio: Realtek ALC 1220 High Definition Audio CODEC
• LAN: Single LAN with Intel single Ethernet PHY i219V, Single LAN with Aquantia AQC107 10G Ethernet Controller
• Ports: 2x USB 3.1 Ports (1 Type A, 1 Type C), 6x USB 3.0 Ports (4 rear, 2 via header), 4x USB 2.0 Ports (2 rear, 2 via header), 1x RJ45 LAN Port, 1x RJ45 10GBase-T port
• Form Factor: ATX, 12.0 x 9.6 inch / 30.48 x 24.38 cm
