Specifications

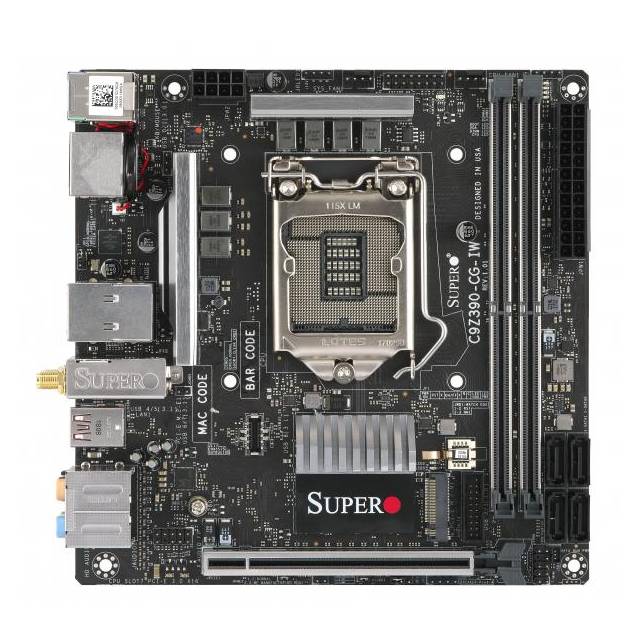

• Mfr Part Number: MBD-C9Z390-CG-IW-O
• CPU: LGA1151
  • Supports Intel 8th/ 9th Generation Core i9/ i7/ i5/ i3/ Pentium/ Celeron Series Processors
  • Support up to 120W TDP
• Chipset: Intel Z390 Express

• Memory: 2x 288pin DDR4-2666/ 2400 MHz DIMM Slots, Non-ECC, Unbuffered, Max Capacity of 64GB
• Slots: 1x PCI-Express 3.0 x16 Slot

• SATA: 4x SATA3 Ports, Support RAID 0, 1, 5, 10

• Audio: ALC1220 High Definition Audio CODEC

• LAN: Intel PHY i219V Gigabit Ethernet Controller
• Ports: 5x USB 3.1 Gen 2 Ports (3 Type-A rear, 1 Type-C rear, 1 via header), 4x USB 3.1 Gen 1 Ports (2 Type-A rear, 2 via header), 4x USB 3.0 Ports (2 rear, 2 via header), 1x HDMI Port, 1x DisplayPort, 1x RJ45 LAN Port

• Form Factor: Mini-ITX, 6.7 x 6.7 inch / 17.02 x 17.02 cm
