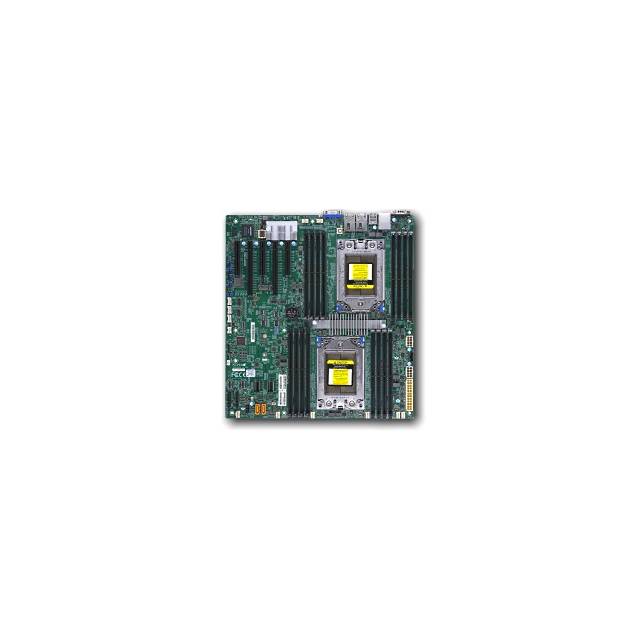

Specifications

• Mfr Part Number: MBD-H11DSI-NT-O
• CPU: Socket SP3
  • Supports Dual AMD EPYC 7000-series Processors
  • Supports up to 32 Cores
• Chipset: System on Chip
• Memory: 16x 288pin DDR4-2666 MHz DIMM Slots, 8-channel, Registered ECC, Max Capacity of 2TB
• Slots: 2x PCI-Express 3.0 x16 Slots, 3x PCI-Express 3.0 x8 Slots
• SATA: 10x SATA3 Ports
• Video: ASPEED AST2500 BMC Graphics
• LAN: 2x Intel X550 10G Base-T Gigabit Ethernet Controllers, Realtek RTL8211E PHY (dedicated IPMI)
• Ports: 2x USB 3.0 Ports (rear), 4x USB 2.0 Ports (2 rear, 2 via header), 1x VGA Port, 1x Serial Port (rear), 2x RJ45 LAN 10GBase-T Ports, 1x RJ45 Dedicated IPMI LAN port
• Form Factor: EATX, 12.00 x 13.05 inch / 30.50 x 33.10 cm
