Specifications

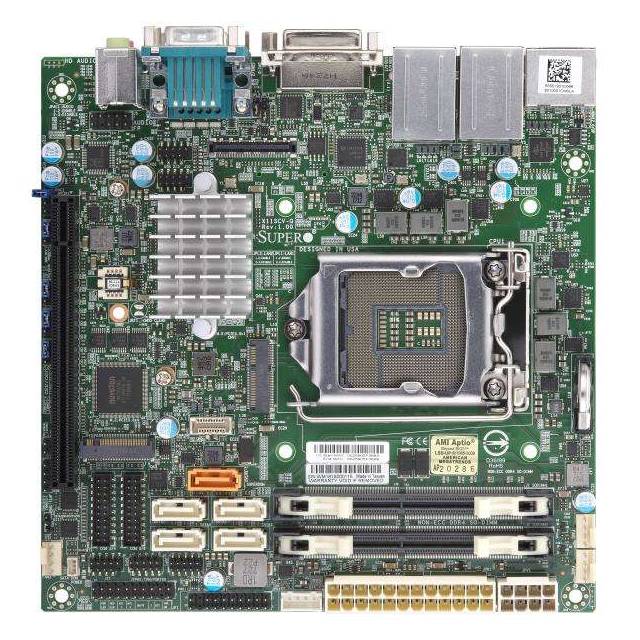

• Mfr Part Number: MBD-X11SCV-Q-O
• CPU: Single Socket H4 LGA1151
  • Supports 8th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
  • Support up to 65W TDP
• Chipset: Intel Q370
• Memory: 2x DDR4-2666 MHz SODIMM Slots, Non-ECC, Unbuffered, Max Capacity of 32GB
• Slots: 1x PCI-Express 3.0 x16 Slot
• SATA: 5x SATA3 Ports, Supports RAID 0, 1, 5, 10
• Audio: ALC 888S High Definition Audio CODEC
• LAN: Intel PHY I219LM and Intel I210-AT Gigabit Ethernet Controllers

• Ports: 6x USB 3.1 Ports (4 rear, 2 via header), 4x USB 2.0 Ports (via headers), 1x DVI-D Port, 1x HDMI Port, 1x DisplayPort, 1x Embedded DisplayPort, 3x Independent Displays Ports, 6x Serial Ports (2 rear, 4 via headers), 2x RJ45 LAN Ports
• Form Factor: Mini-ITX, 6.7 x 6.7 inch / 17.02 x 17.02 cm
• RoHS Compliant
