Specifications

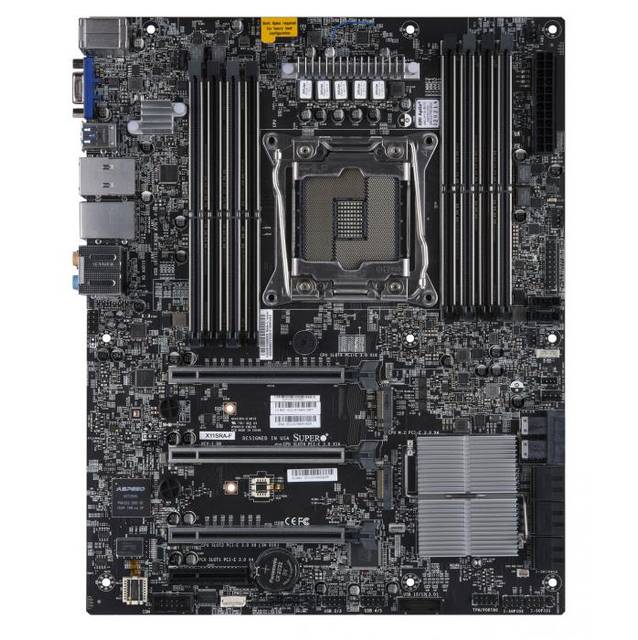

• Mfr Part Number: MBD-X11SRA-F-O
• CPU: LGA2066
  • Supports Intel Xeon Skylake-W Processor
  • Supports Intel Xeon W Family Processor
  • Support up to 140W TDP
• Chipset: Intel C422
• Memory: 8x 288pin DDR4-2666/ 2400/ 2133/ 1866/ 1600 MHz DIMM Slots, Supports up to 256GB ECC/REG Memory or up to 512GB ECC/REG/Load Reduced Memory
• Slots: 3x PCI-Express 3.0 x16 Slots, 1x PCI-Express 3.0 x4 Slot
• SATA: 6x SATA3 Ports, Supports RAID 0, 1, 5, 10
• Audio: Realtek ALC 1220 7.1-Channel High Definition Audio CODEC
• LAN: Intel I210-AT Gigabit Ethernet Controller; Single LAN with Aquantia 5G LAN chip AQC108
• Ports: 2x USB 3.1 Ports (Type A), 6x USB 3.0 Ports (4 rear, 2 via header), 6x USB 2.0 Ports (2 rear, 4 via headers), 2x RJ45 LAN Ports
• Form Factor: ATX, 12.0 x 9.6 inch / 30.48 x 24.38 cm
• RoHS Compliant
