Specifications

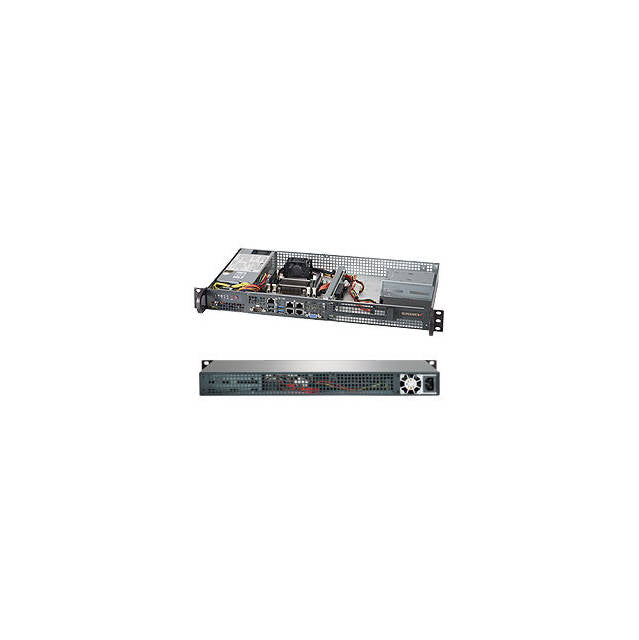

• Mfr Part Number: SYS-5018A-FTN4
• Motherboard: Super A1SRi-2758F
• Processor: Intel Atom C2758 Processor
  • Supports up to 20W TDP (Eight-Core)
• Chipset: System-on-Chip
• Memory: 4x 204pin DDR3-1600/1333 SO-DIMM Slots, ECC, Max Capacity of 32GB
• Slots: 1x PCI-Express 2.0 x8 Slot (via Riser)
• SATA: 2x SATA3 Ports, 4x SATA2 Ports
• Video: Integrated Aspeed AST2400 BMC Graphics
• LAN: C2000 SoC I354 Quad Gigabit Ethernet Controller
• Ports: 4x USB 3.0 Ports (2 rear, 1 Type A, 1 via header), 2x USB 2.0 Ports, 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 4x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: 1U Rackmount
• Power Supply: 200W 80 PLUS Gold Certified Low Noise AC-DC Power Supply w/ PFC
• Front Panel:
  • Buttons: Power On/Off, System Reset
  • LEDs: Power, Hard Drive Activity, 2x Network Activity, System Overheat, Information LED (temp, status)
• Color: Black
• Dimensions (WxDxH): 17.2 x 9.8 x 1.7 inch / 437.0 x 249.0 x 43.0 mm
• Weight: 8.0 lbs / 3.62 kg
• RoHS Compliant
