Specifications

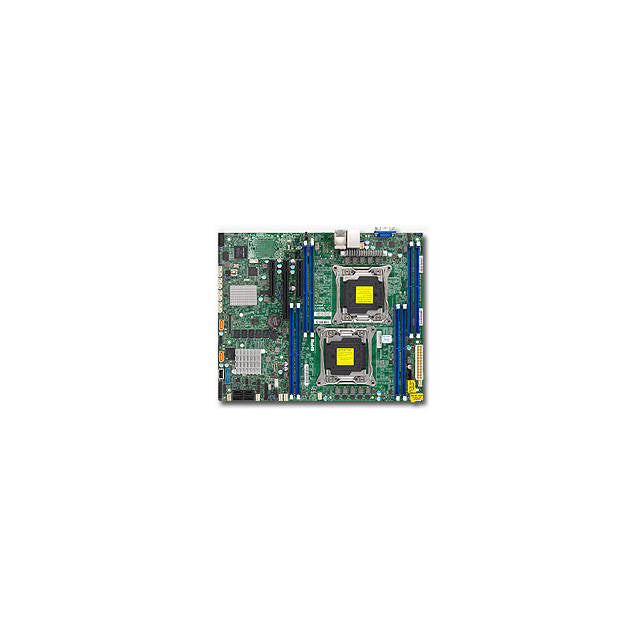

• Mfr Part Number: X10DRL-C-B
• CPU: Dual LGA2011
  • Support Intel Xeon E5-2600 v3 Family Processors
  • Support up to 18 Cores
  • Support up to 45MB Cache
  • QPI up to 9.6 GT/s
  • Support up to 145W TDP
• Chipset: Intel C612 Express
• Memory: 8x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Support up to 512GB ECC/Load Reduced Memory or up to 256GB ECC/REG Memory
• Slots: 1x PCI-Express 3.0 x16 Slot, 2x PCI-Express 3.0 x8 Slots
• SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10 (I-SATA 4 and I-SATA 5 Support SATA DOM)
• SAS: 8x SAS3 Ports, Support RAID 0, 1, 5, 6, 10, 50, 60
• Video: Aspeed AST2400 BMC Graphics
• LAN: Intel i210 Dual Gigabit Ethernet Controller, 1x Realtek RTL8211E PHY (dedicated IPMI)
• Ports: 4x USB 3.0 Ports (2 rear, 2 via header), 3x USB 2.0 Ports (2 via header, 1 Type A), 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: ATX, 12.00 x 10.00 inch / 30.48 x 25.40 cm
• RoHS Compliant
