Specifications

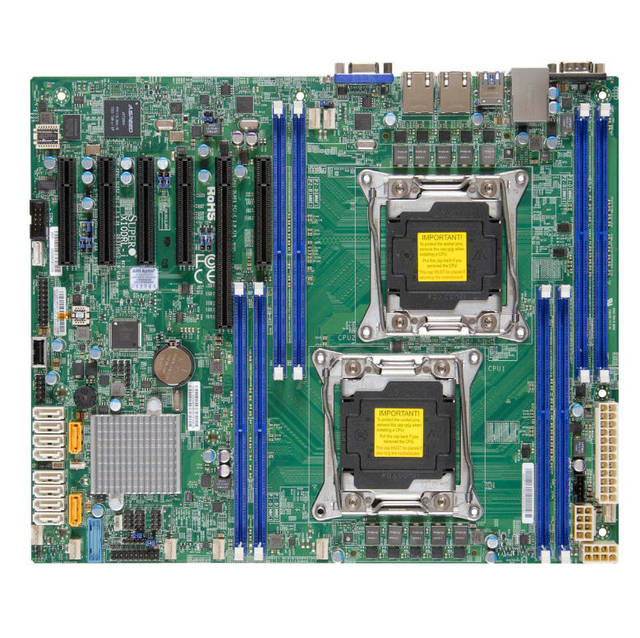

• Mfr Part Number: X10DRL-I-B
• CPU: Dual LGA2011
  • Support Intel Xeon E5-2600 v3 Family Processors
  • Support up to 18 Cores
  • Support up to 45MB Cache
  • QPI up to 9.6 GT/s
  • Support up to 145W TDP
• Chipset: Intel C612 Express
• Memory: 8x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Support up to 512GB ECC/Load Reduced Memory or up to 256GB ECC/REG Memory
• Slots: 1x PCI-Express 3.0 x16 Slot, 4x PCI-Express 3.0 x8 Slots (one runs at x4), 1x PCI-Express 2.0 x8 Slot (runs at x4)
• SATA: 10x SATA3 Ports, Six Support RAID 0, 1, 5, 10, Two Support SATA DOM
• Video: Aspeed AST2400 BMC Graphics
• LAN: Intel i210 Gigabit Ethernet Controller, 1x Realtek RTL8211E PHY (dedicated IPMI)
• Ports: 4x USB 3.0 Ports (2 rear, 2 via header), 5x USB 2.0 Ports (2 rear, 2 via header, 1 Type A), 1x VGA Port, 3x Serial Ports (1 via header, 2x Fast UART 16550), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: ATX, 12.00 x 10.00 inch / 30.48 x 25.40 cm
• RoHS Compliant
