Specifications

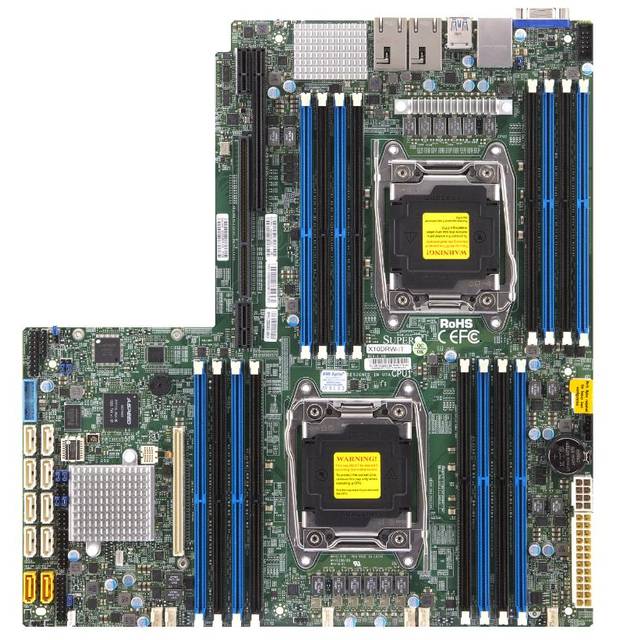

• Mfr Part Number: X10DRW-I-O
• CPU: Dual LGA2011
  • Support Intel Xeon E5-2600 v3 Family Processors
  • Support up to 18 Cores
  • Support up to 45MB Cache
  • QPI up to 9.6 GT/s
  • Support up to 145W TDP
• Chipset: Intel C612 Express
• Memory: 16x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Support up to 1TB ECC/Load Reduced Memory or up to 512GB ECC/REG Memory
• Slots: 1x PCI-Express 3.0 x16 Slot (AOM); Riser card support - 1x PCI-Express 3.0 x32 Slot (Left side), 1x PCI-Express 3.0 x16 Slot (Right side)
• SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
• Video: Aspeed AST2400 BMC Graphics
• LAN: Intel i350 Dual-Port Gigabit Ethernet Controller; 1x Realtek RTL8211E PHY (dedicated IPMI)
• Ports: 6x USB 3.0 Ports (4 rear, 2 via header), 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: Proprietary WIO, 12.3 x 13.0 inch / 31.2 x 33.0 cm
• RoHS Compliant
