Specifications

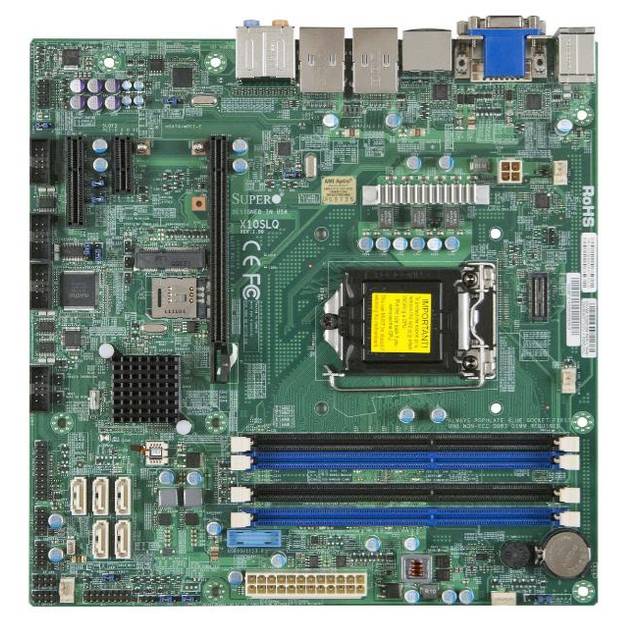

• Mfr Part Number: X10SLQ-B
• CPU: LGA1150
  • Support 4th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
• Chipset: Intel Q87 Express
• Memory: 4x 240pin DDR3-1600 DIMM Slots, Non-ECC, Unbuffered, Max Capacity of 32GB
• Slots: 1x PCI-Express 3.0 x16 Slot, 1x PCI-Express 2.0 x4 Slot, 1x PCI-Express 2.0 x1 Slot, 1x Mini PCI-Express Slot (w/ mSATA support)
• SATA: 6x SATA3 Ports (including 1x mSATA), Support RAID 0, 1, 5, 10
• Audio: Realtek ALC888S 7.1-Channel High Definition Audio CODEC
• LAN: Intel i217LM and Intel i210AT Gigabit Ethernet Controllers
• Ports: 4x USB 3.0 Ports (2 rear, 2 via header), 8x USB 2.0 Ports (4 rear, 4 via headers), 1x PS/2 Keyboard/Mouse Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x DisplayPort, 2x RJ45 LAN Ports, Audio I/O Jacks
• Form Factor: MicroATX, 9.6 x 9.6 inch / 24.4 x 24.4 cm
• RoHS Compliant
