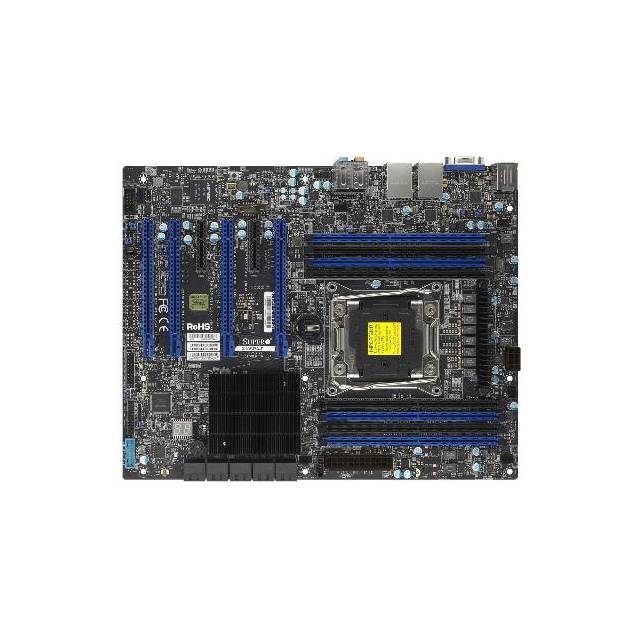

Zoom Supermicro X10SRA-B LGA2011/ Intel C612/ DDR4/ SATA3&USB3.0/ A&2GbE/ ATX Server Motherboard

Supermicro X10SRA-B LGA2011/ Intel C612/ DDR4/ SATA3&USB3.0/ A&2GbE/ ATX Server Motherboard

$340.00 Regular price $364.48

Specifications

  • Mfr Part Number: X10SRA-B
  • CPU: LGA2011
    • Support Intel Xeon E5-2600/1600 v3 Family Processors or 4th Generation Intel Core i7 Series
    • Support up to 18 Cores
    • Support up to 45MB Cache
    • Support up to 160W TDP
  • Chipset: Intel C612 Express
  • Memory: 8x 288pin DDR4-2133/ 1866/ 1600/ 1333MHz DIMM Slots, Support up to 512GB ECC/Load Reduced Memory or up to 256GB ECC/REG Memory or up to 64GB ECC/Non-ECC Unbuffered Memory
  • Slots: 4x PCI-Express 3.0 x16 Slots (run at 16/16/NA/8 or 16/8/8/8), 2x PCI-Express 2.0 x4 Slots (run at x1)
  • SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
  • Audio: RealTek ALC1150 7.1-Channel High Definition Audio CODEC
  • LAN: Intel i210-AT Dual-Port Gigabit Ethernet Controller
  • Ports: 8x USB 3.0 Ports (6 rear, 2 via header), 1x PS/2 Keyboard/Mouse port, 2x RJ45 LAN Ports
  • Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
  • RoHS Compliant

Vendor: Supermicro
