Specifications

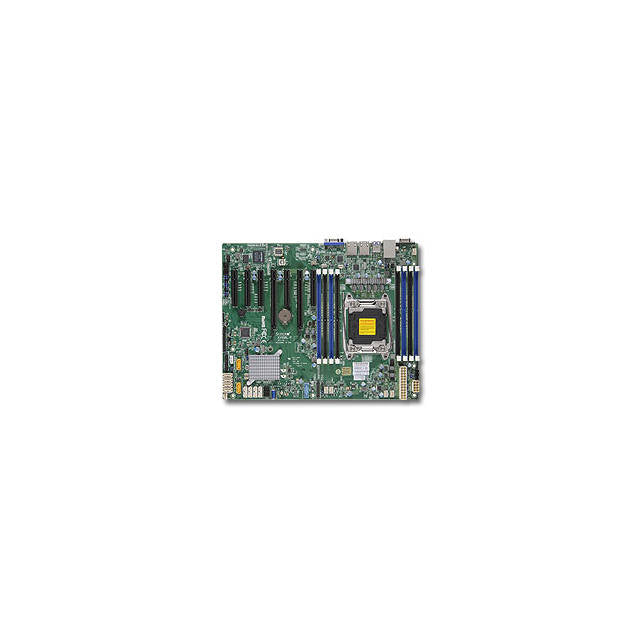

• Mfr Part Number: X10SRL-F-B
• CPU: LGA2011
  • Supports Intel Xeon E5-2600/1600 v3 Processors
  • Supports up to 18 Cores
  • Supports up to 45MB Cache
  • Supports up to 145W TDP
• Chipset: Intel C612 Express
• Memory: 8x 284pin DDR4-2133/ 1866/ 1600/ 1333 DIMM Slots, Supports up to 512GB ECC Load Reduced Memory or up to 256GB ECC/REG Memory
• Slots: 2x PCI-Express 3.0 x16 Slot (run at x8), 4x PCI-Express 3.0 x8 Slots (two run at x4), 1x PCI-Express 2.0 x8 Slot (runs at x4)
• SATA: 10x SATA3 Ports, Support RAID 0, 1, 10
• Video: Integrated ASPEED AST2400 BMC Graphics
• LAN: Intel i210 Dual Port Gigabit Ethernet Controller
• Ports: 4x USB 3.0 Ports (2 rear, 1 via header, 1 Type A), 8x USB 2.0 Ports (2 rear, 6 via headers), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
• RoHS Compliant
