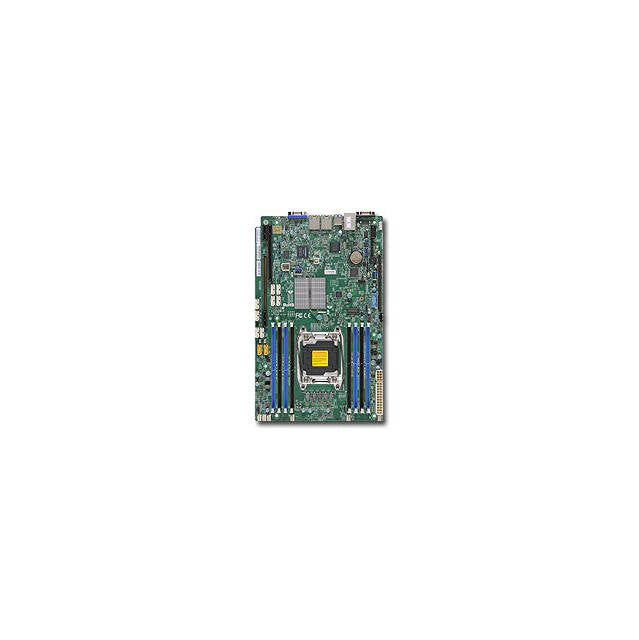

Supermicro X10SRW-F-B LGA2011/ Intel C612/ DDR4/ SATA3&USB3.0/ V&2GbE/ Proprietary Server Motherboard
$350.00
Regular price
$375.20
Specifications
- Mfr Part Number: X10SRW-F-B
-
CPU: LGA2011
- Support Intel Xeon E5-2600/1600 v3 Family Processors
- Support up to 145W TDP
- Support up to 18 Cores
- Support up to 45MB Cache
- Chipset: Intel C612 Express
- Memory: 8x 284pin DDR4-2133/ 1866/ 1600/ 1333MHz DIMM Slots, Support up to 512GB ECC/Load Reduced Memory or up to 256GB ECC/REG Memory
- Slots: 1x PCI-Express 3.0 x16 Slot (runs at x8 ), 1x PCI-Express 3.0 x32 Slot (Left Riser)
- SATA: 10x SATA3 Ports, Support RAID 0, 1, 10
- Video: Integrated Aspeed AST2400 BMC Graphics
- LAN: Intel i350-AM2 Dual-Port Gigabit Ethernet Controller
- Ports: 4x USB 3.0 Ports (2 rear, 1 via header, 1 Type A), 8x USB 2.0 Ports (2 rear, 6 via headers), 1x eUSB header, 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
- Form Factor: Proprietary, 8.15 x 13.05 inch / 20.70 x 33.15 cm
- RoHS Compliant
Vendor: Supermicro
