Specifications

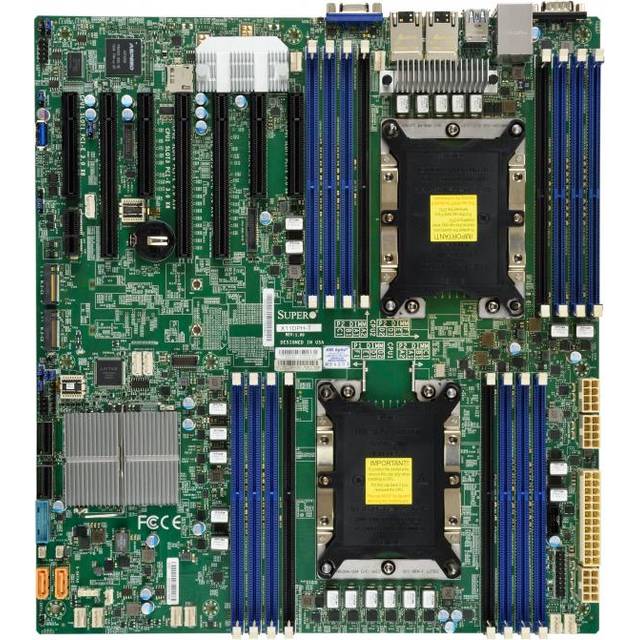

• Mfr Part Number: X11DPH-T-O
• CPU: Dual Socket P LGA3647
  • Support Intel Xeon Scalable Processors
  • CPU TDP support 205W
  • 3 UPI up to 10.4 GT/s
• Chipset: Intel C624
• Memory: 16x DDR4-2666/ 2400/ 2133 MHz ECC DIMM Slots, Support up to 2TB 3DS ECC/REG Memory or up to 2TB 3DS ECC/Load Reduced Memory
• Slots: 3x PCI-Express 3.0 x16 Slots, 4x PCI-Express 3.0 x8 Slots
• SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
• Video: Aspeed AST2500 Graphics
• LAN: Intel X557 Dual LAN 10-Gigabit Ethernet Controller
• Ports: 7x USB 3.0 Ports (4 rear, 2 via header, 1 Type A), 1x VGA Port, 2x Serial Ports (1 rear, 1 header), 2x RJ45 10GBase-T Ports
• Form Factor: EATX, 12.0 x 13.0 inch / 30.48 x 33.02 cm
• RoHS Compliant
