Specifications

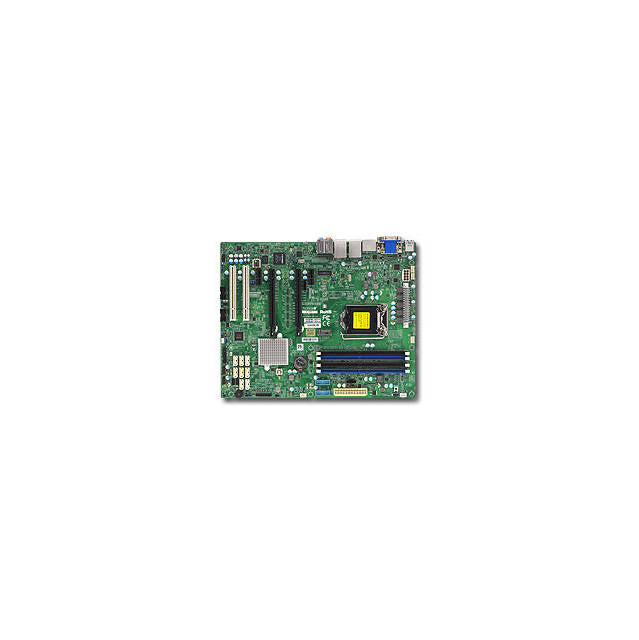

• Mfr Part Number: X11SAE-F-O
• CPU: LGA1151
  • Supports Intel Xeon E3-1200 v5 Processor
  • Supports 6th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
  • Support up to 95W TDP
• Chipset: Intel C236
• Memory: 4x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, ECC, Unbuffered, Max Capacity of 64GB
• Slots: 2x PCI-Express 3.0 x16 Slots (run at 16/NA or 8/8), 2x PCI-Express 3.0 x1 Slots, 2x PCI Slots (5V, 32bit)
• SATA: 8x SATA3 Ports, Support RAID 0, 1, 5, 10
• Video: ASPEED AST2400 BMC Graphics
• Audio: Realtek ALC888S High Definition Audio CODEC
• LAN: Intel I210-AT + Intel PHY I219LM Gigabit Ethernet Controllers
• Ports: 2x USB 3.1 Ports, 6x USB 3.0 Ports (2 rear, 4 via headers), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x VGA Port, 1x DisplayPort, 1x DVI-D Port, 1x HDMI Port, 2x RJ45 LAN Ports
• Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 22.4 cm
• RoHS Compliant
