Specifications

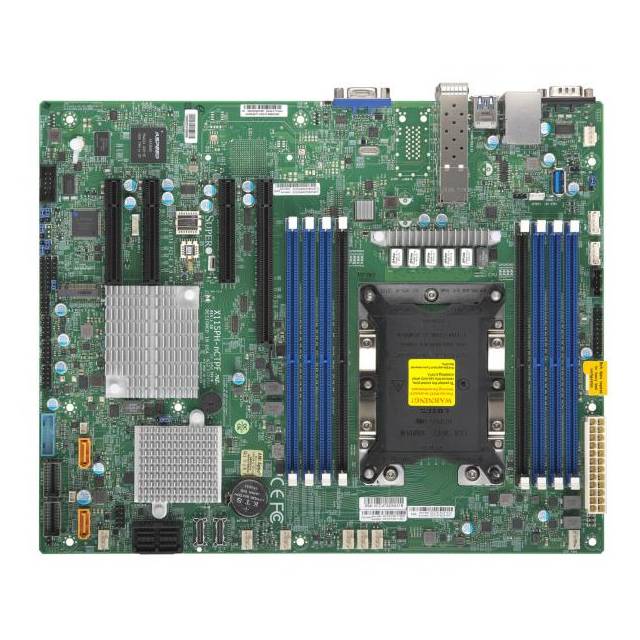

• Mfr Part Number: X11SPH-NCTPF-O
• CPU: Dual Socket P LGA3647
  • Supports Intel Xeon Scalable Family Processor
  • Support up to 205W TDP
  • Up to 28 cores
• Chipset: Intel C622
• Memory: 8x 288-pin DDR4-2666/ 2400/ 2133/ 1866/ 1600MHz DIMM Slots, ECC, Support up to 1TB ECC/3DS Load Reduced Memory or up to 512GB ECC/Load Reduced Memory or up to 256GB ECC/REG Memory
• Slots: 1x PCI-Express 3.0 x16 Slot (runs at x16 or x8), 3x PCI-Express 3.0 x8 Slots (one runs at x0 or x8, one runs at x4)
• SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
• SAS: 8x SAS3 Ports, Support RAID 0, 1, 10
• Video: ASPEED AST2500 BMC Graphics
• LAN: Dual LAN with 10G SFP+ with Intel X722 + Inphi CS4227
• Ports: 5x USB 3.0 Ports (2 rear, 2 via header, 1 Type A), 8x USB 2.0 Ports (2 rear, 6 via headers), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header)
• Form Factor: ATX, 12.0 x 9.6 inch / 30.48 x 24.38 cm
