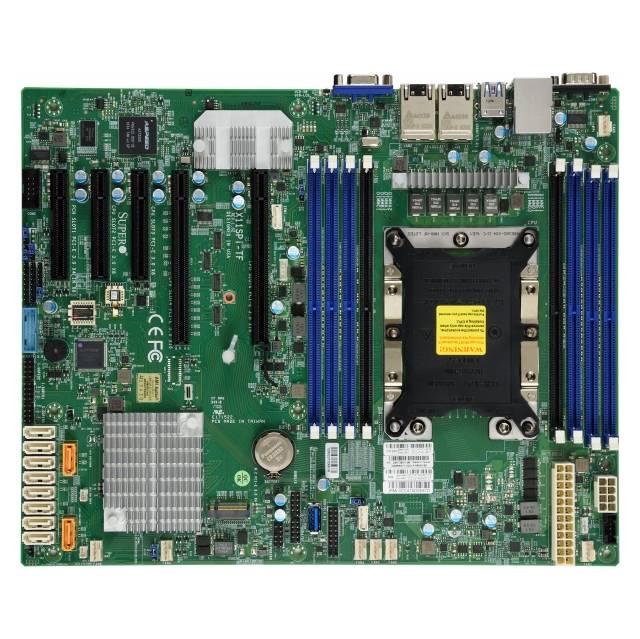

Zoom Supermicro X11SPI-TF-O LGA3647/ Intel C622/ DDR4/ SATA3&USB3.0/ V&2GbE/ ATX Motherboard

Supermicro X11SPI-TF-O LGA3647/ Intel C622/ DDR4/ SATA3&USB3.0/ V&2GbE/ ATX Motherboard

$517.50 Regular price $554.76

Specifications

  • Mfr Part Number: X11SPI-TF-O
  • CPU: LGA3647
    • Supports Intel Xeon Scalable Processor
    • Support up to 205W TDP
    • Up to 28 cores
  • Chipset: Intel C622
  • Memory: 8x 288pin DDR4-2666/ 2400/ 2133/ 1866/ 1600 MHz DIMM Slots, Support up to 1TB 3DS ECC/Load Reduced Memory or up to 512GB ECC/Load Reduced Memory or up to 256GB ECC/REG Memory
  • Slots: 2x PCI-Express 3.0 x16 Slots (one x16 or x8), 2x PCI-Express 3.0 x8 Slots (one x0 or x8), 1x PCI-Express 3.0 x4 Slot (in x8)
  • SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
  • Video: ASPEED AST2500 BMC Graphics
  • LAN: Dual LAN with 10GBase-T with Intel X722 + X557
  • Ports: 5x USB 3.0 Ports (2 rear, 2 via header, 1 Type A), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x VGA Port, 2x Serial Ports (1 rear, 1 header), 2x RJ45 10GBase-T Ports
  • Form Factor: ATX, 12.0 x 9.6 inch / 30.48 x 24.38 cm
  • RoHS Compliant

Vendor: Supermicro
