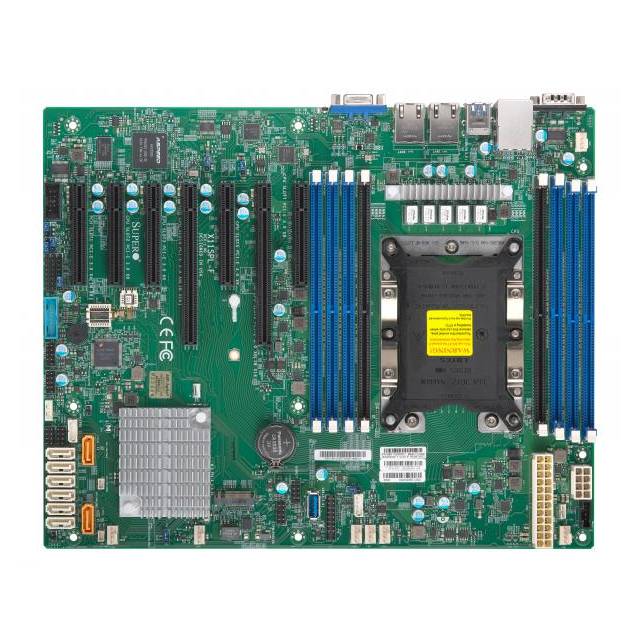

Zoom Supermicro X11SPL-F-O LGA3647/ Intel C621/ DDR4/ SATA3&USB3.0/ V&2GbE/ ATX Server Motherboard

Supermicro X11SPL-F-O LGA3647/ Intel C621/ DDR4/ SATA3&USB3.0/ V&2GbE/ ATX Server Motherboard

$401.25 Regular price $430.14

Specifications

  • Mfr Part Number: X11SPL-F-O
  • CPU: Single Socket P LGA3647
    • Support Intel Xeon Scalable Processors
    • CPU TDP support 165W
    • Up to 28 cores
  • Chipset: Intel C621
  • Memory: 8x 288-pin DDR4-2666/ 2400/ 2133/ 1866/ 1600 MHz ECC DIMM Slots, Support up to 1TB 3DS ECC/Load Reduced Memory or up to 512GB ECC/Load Reduced Memory or up to 256GB ECC/REG Memory
  • Slots: 2x PCI-Express 3.0 x8 Slots (runs at x16), 4x PCI-Express 3.0 x8 Slot, 1x PCI-Express 3.0 x4 Slot (runs at x8)
  • SATA: 8x SATA3 Ports, Support RAID 0, 1, 5, 10
  • Video: Aspeed AST2500 BMC Graphics
  • LAN: Dual LAN with 1GbE with Intel I210
  • Ports: 5x USB 3.0 Ports (2 rear, 2 via header, 1 Type A), 8x USB 2.0 Ports (2 rear, 6 via headers), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 Ports
  • Form Factor: ATX, 12.0 x 9.6 inch / 30.48 x 24.38 cm
  • RoHS Compliant

Vendor: Supermicro
