Specifications

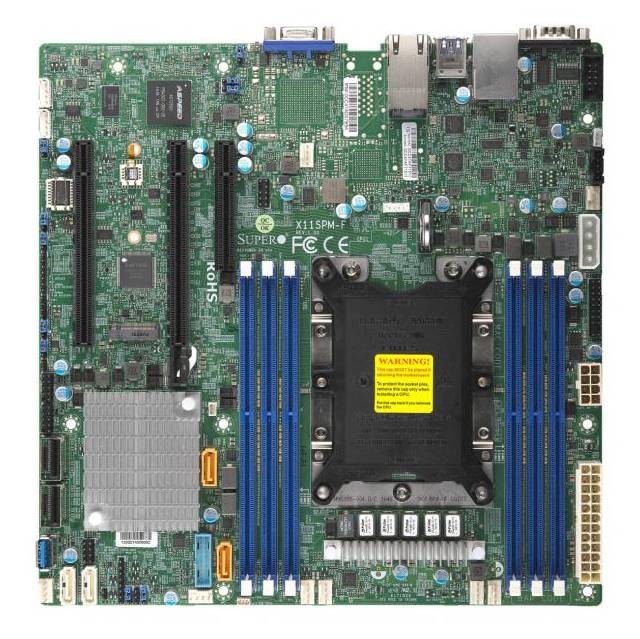

• Mfr Part Number: X11SPM-F-O
• CPU: Single Socket P LGA 3647
  • Support Intel Xeon Scalable Processors
  • CPU TDP support 165W
  • Up to 28 cores
• Chipset: Intel C621
• Memory: 6x 288-pin DDR4-2666/ 2400/ 2133/ 1866/ 1600 MHz ECC DIMM Slots, Support up to 768GB ECC 3DS Load Reduced Memory or 384GB ECC Load Reduced Memory or up to 192GB ECC REG Memory
• Slots: 2x PCI-Express 3.0 x16 Slots, 1x PCI-Express 3.0 x8 Slot
• SATA: 12x SATA3 Ports, Support RAID 0, 1, 5, 10
• Video: Aspeed AST2500 BMC Graphics
• LAN: Marvell 88E1512 Dual LAN Gigabit Ethernet Controller
• Ports: 5x USB 3.0 Ports (2 rear, 2 via header, 1 Type A), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x VGA Port, 2x Serial Ports (1 rear, 1 header), 2x RJ45 LAN Ports
• Form Factor: MicroATX, 9.6 x 9.6 inch / 24.38 x 24.38 cm
• RoHS Compliant
