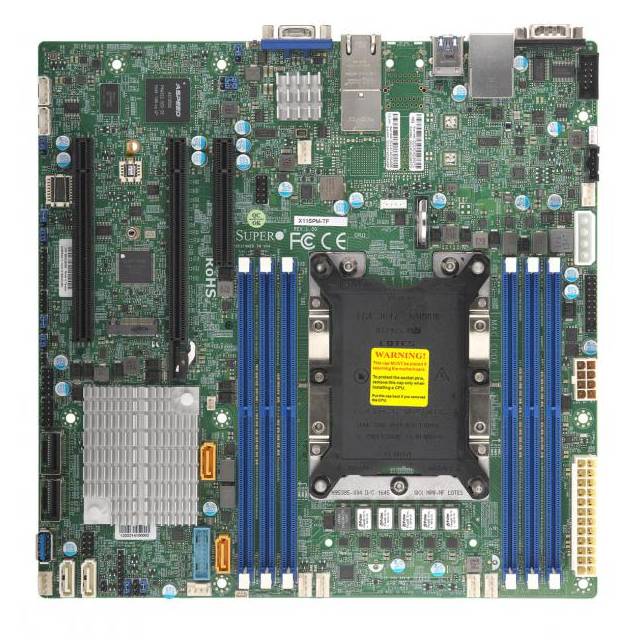

Zoom Supermicro X11SPM-TF-O LGA3647/ Intel C622/ DDR4/ SATA3&USB3.0/ V&2GbE/ MicroATX Server Motherboard

Supermicro X11SPM-TF-O LGA3647/ Intel C622/ DDR4/ SATA3&USB3.0/ V&2GbE/ MicroATX Server Motherboard

$530.45 Regular price $568.64

Specifications

  • Mfr Part Number: X11SPM-TF-O
  • CPU: Single Socket P LGA3647
    • Support Intel Xeon Scalable Processors
    • CPU TDP support 165W
    • Up to 28 cores
  • Chipset: Intel C622
  • Memory: 6x 288-pin DDR4-2666/ 2400/ 2133/ 1866/ 1600MHz ECC DIMM Slots, Support up to 768GB 3DS ECC/Load Reduced Memory or up to 384GB ECC/Load Reduced Memory or up to 192GB ECC/REG Memory
  • Slots: 2x PCI-Express 3.0 x16 Slots, 1x PCI-Express 3.0 x8 Slot
  • SATA: 12x SATA3 Ports, Support RAID 0, 1, 5, 10
  • Video: Aspeed AST2500 BMC Graphics
  • LAN: Dual LAN with 10GBase-T with Intel X722 + X557
  • Ports: 5x USB 3.0 Ports (2 rear, 2 via header, 1 Type A), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 10GBase-T Ports
  • Form Factor: MicroATX, 9.6 x 9.6 inch / 24.38 x 24.38 cm
  • RoHS Compliant

Vendor: Supermicro
