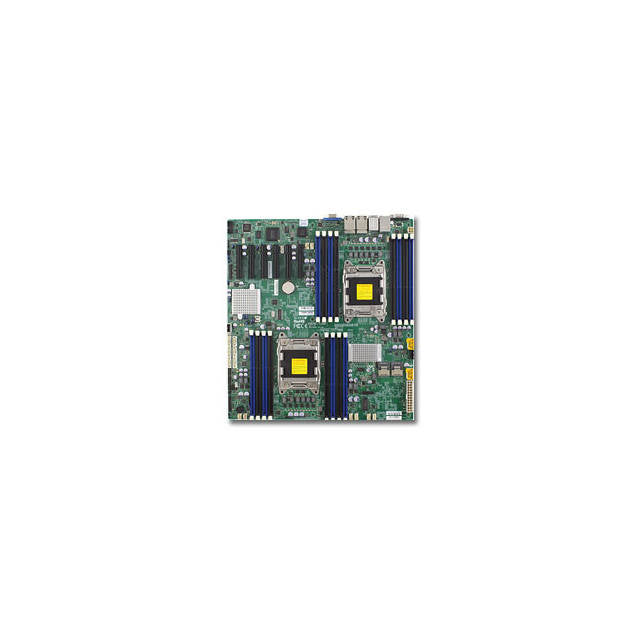

Zoom Supermicro X9DRD-7LN4F-B Dual LGA2011/ Intel C602J/ DDR3/ SATA3&SAS/ V&4GbE/ EATX Server Motherboard

Supermicro X9DRD-7LN4F-B Dual LGA2011/ Intel C602J/ DDR3/ SATA3&SAS/ V&4GbE/ EATX Server Motherboard

$634.74 Regular price $680.44

Specifications

  • Mfr Part Number: X9DRD-7LN4F-B
  • CPU: Dual LGA2011; Supports Intel Xeon E5-2600 Series Processors; Supports up to 135W TDP; Cache up to 20MB; QPI up to 8.0 GT/s
  • Chipset: Intel C602J
  • Memory: 16x 240pin DDR3-1600/1333/1066/800 DIMM Slots, Supports up to 512GB ECC/REG Memory or up to 128GB ECC/Non-ECC Un-buffered Memory
  • Slots: 6x PCI-Express 3.0 x8 Slots
  • SATA: 4x SATA2 Ports, 2x SATA3 Ports; Support RAID 0, 1, 5, 10
  • SAS: 8x SAS2 Ports, Support RAID 0, 1, 10
  • Video: Integrated Matrox G200eW Graphics Controller
  • LAN: Intel i350 Quad Port Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)
  • Ports: 9x USB 2.0 Ports (4 rear, 4 via headers, 1 Type A); 1x VGA Port; 2x Serial Ports (1 rear, via header); 4x RJ45 LAN Ports; 1x RJ45 Dedicated IPMI LAN Port
  • Form Factor: Extended ATX, 12.0 x 13.0 inch / 30.5 x 33.0 cm
  • RoHS Compliant

Vendor: Supermicro
