Specifications

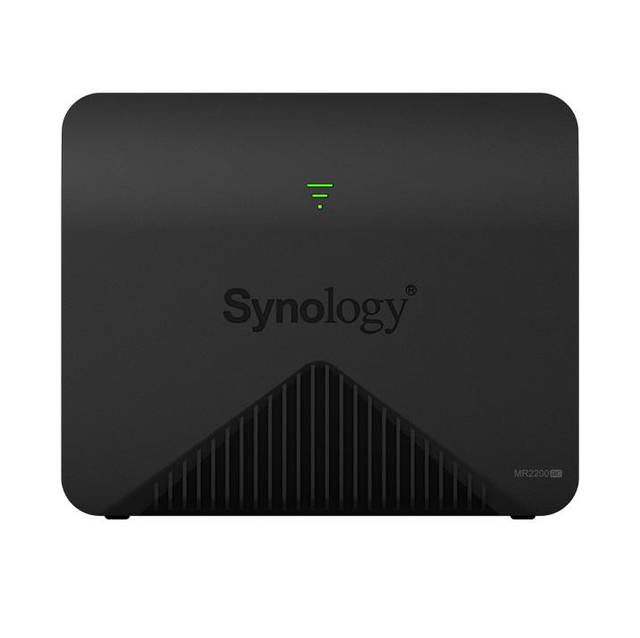

• Mfr Part Number: MR2200AC

• Features:
  • Dedicated Tri-band 2.13 Gbps (400+867+867 Mbps) bandwidth optimized for performance and reliability

  • Easy setup and remote management from web client or mobile app

  • Comprehensive parental management and easy-to-use interface with Safe Access
  • Single Wi-Fi name and seamless roaming with 802.11 k/v/r support

  • Create advanced VPNs with WebVPN, Synology SSL VPN, and SSTP VPN capability
  • Guest Wi-Fi with features such as guest portals, scheduling, and password rotation

  • Powerful add-on packages to enhance security, file sharing, and additional functionality
• Hardware Specification:
  • CPU: Quad Core 717 MHz

  • Memory: 256 MB DDR3

  • Antenna Type: 2T2R high-performance internal antenna (2.4 GHz / 5 GHz)
  • LAN Port: 1x Gigabit Port

  • WAN Port: 1x Gigabit Port

  • External Ports: USB 3.0 Port

• Wireless Specification:
  • Wireless Standards: 802.11a/n/ac 5 GHz-1/ 5 GHz-2, 802.11b/g/n 2.4 GHz, simultaneous tri-band

  • Frequency and data rate:
    • 2.4 GHz: 400 Mbps

    • 5 GHz-1: 867 Mbps

    • 5 GHz-2: 867 Mbps

  • Wireless Security: WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise, Wi-Fi Protected Setup (WPS) 2.0, WPA3-Personal/Enterprise certified, Wi-Fi Enhanced Open certified

  • Seamless roaming: 802.11k/v/r standard support

  • Other wireless functions:

    • Smart Connect - 2.4 GHz and 5 GHz automatic band steering, Independent 2.4 GHz / 5 GHz Wi-Fi schedule On / Off

    • Guest Network - Wi-Fi schedule On / Off

• Power Supply:
  • AC Input Power Voltage: 100V to 240V AC

  • Power Frequency: 50/60 Hz, Single Phase

• Certification: RoHS Compliant; Wi-Fi certified; compliant with CE, FCC, NCC, BSMI, IC, IMDA, TELEC, JATE, VCCI, KCC, RCM standards

• Operating System: Synology Router Manager (SRM)

• Dimensions (WxDxH): 199.0 x 65.0 x 154.0 mm

• Packaging Content:
  • MR2200ac main unit

  • AC power adapter

  • RJ-45 LAN cable

  • Quick Installation Guide
