Specification

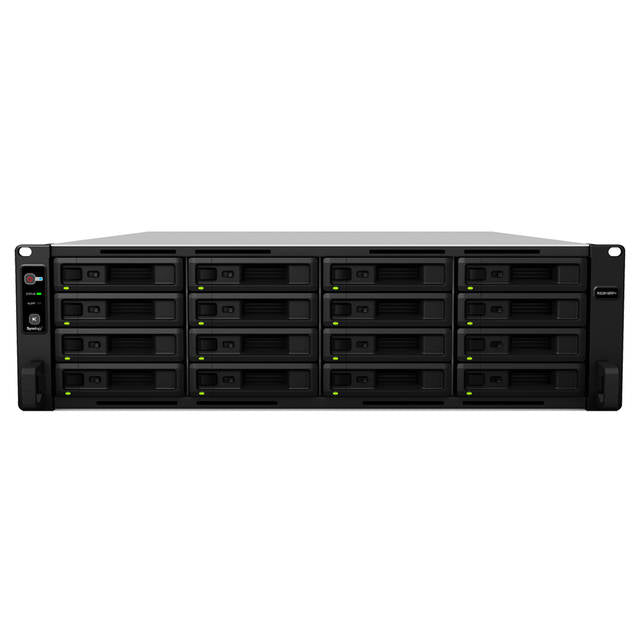

• Mfr Part Number: RS2818RP+
• Hardware:
  • CPU: Inel Atom C3538 w/ Hardware Encryption Engine (AES-NI) (2.1GHz, Quad Core)
  • Memory: 4GB DDR4 (Expandable, Up to 64GB)
  • Internal HDD/SSD: 16x 3.5" or 2.5" SATA HDD/SSD (drives not included)
  • Max Internal Capacity: 192TB (6x 12TB HDD) (Capacity may vary by RAID types)
  • External HDD Interface: 2x USB 3.0 Ports, 1x Expansion Port
  • LAN: 4x RJ-45 1GbE LAN Port (with Link Aggregation / Failover support)
  • PCIe: 1x Gen3 x8 slot (black, x4 link)
  • Fan: 3x (80 x 80mm) Fans
  • Noise Level: 51.0 dB(A)
  • Power Recovery
  • Power Supply Unit/Adapter: 2x 500W
  • AC Input Power Voltage: 100 ~ 240 V AC
  • Power Frequency: 50/60Hz, Single Phase
  • Redundant Power Supply (for xs+ and RP model)
• Networking Protocols: CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN)
• Security: FTP over SSL/TLS, IP Auto-Block, Firewall, Encrypted Network Backup over Rsync, HTTPS Connection
• File System:
  • Internal Drives:  Btrfs, EXT4
  • External Drives: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT
• File Sharing:
  • Max User Accounts: 2048
  • Max Groups: 256
  • Max Shared Folder: 512
  • Max Shred Folder Sync Tasks: 8
  • Max Concurrent CIFS/ AFP/ FTP Connections: 1000
  • Windows Access Control List Integration
  • NFS Kerberos Authentication
• Utilities: Synology Assistant
• Applications:
  • File Station: Virtual drive, remote folder, Windows ACL editor, compressing/extracting archived files, bandwidth control for specific users or groups, creating sharing links, transfer logs
  • Backup Solutions: Support local backup, network backup, and backup data to public clouds
  • FTP Server: Bandwidth control for TCP connections, custom FTP passive port range, anonymous FTP, FTP SSL/TLS and SFTP protocol, boot over the  network with TFTP and PXE support, transfer logs
  • Web Station: Virtual host (up to 30 websites), PHP/MariaDB, 3rd-party applications support
• Supported Clients: Windows 7 and 10, Mac OS X 10.11 onward
• Power Consumption: 138.1W (Access, for RP model); 66.7W (HDD Hibernation, for RP model)
• Certifications: EAC, VCCI, CCC, RCM, FCC, CE, BSMI
• Dimensions (WxDxH): 482.0 x 656.5 x 132.3 mm
• Weight: 17.4 kg
• Package Contents: Main Unit, Accessory Pack, AC Power Cord x2 (for RP model), Quick Installation Guide
