Specifications

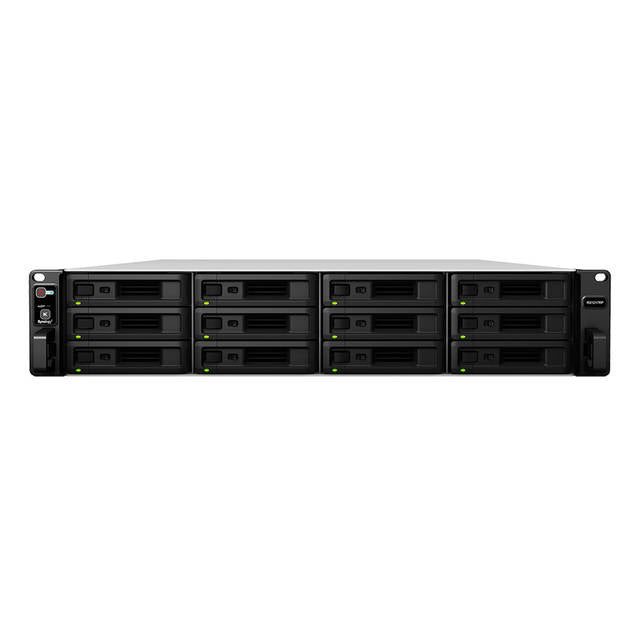

• Mfr Part Number: RX1217RP
• Storage:
  • Drive Bay: 12

  • Compatible Drive Type: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD

  • Maximum Internal Raw Capacity: 120 TB (10 TB HDD x 12) (Capacity may vary by RAID types)

  • Hot Swappable Drive

  • RAID Management through Synology DSM

• External Ports: 1x Infiniband Port

• System Fan: 3x (80 x 80mm) Fans

• Noise Level: 54.2 dB(A)

• Power:
  • Power Recovery: Synchronized with the Synology RackStation

  • Power Supply Unit / Adapter: 2x 500W

  • AC Input Power Voltage: 100V to 240V AC

  • Power Frequency: 50/60 Hz, Single Phase
  • Power Consumption: 71.32W (Access); 31.20W (HDD Hibernation)

• Applied Models: RS3617xs+, RS3617xs, RS3617RPxs

• Certification: FCC Class A, CE Class A, BSMI Class A

• Dimensions (WxDxH): 430.5 x 692.0 x 88.0 mm

• Weight: 13.4 kg

• Packaging Content: Main Unit, Accessory Pack, 2x AC Power Cord, Expansion Cable - Infiniband, Quick Installation Guide

• RoHS Compliant
