Specifications

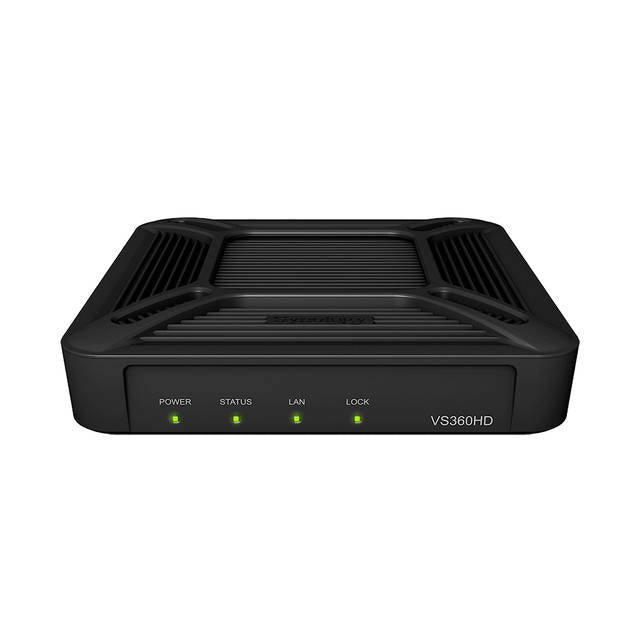

• Mfr Part Number: VS360HD
• Features:
  • Ultra Compact Palm Size Design
  • PC-less Live View & Playback Solution
  • HDMI/VGA Dual Full HD Output
  • 36-Channel Simultaneous HD Live View
  • Fan-less Energy Efficient Design
  • Includes VESA-Compliant Kit to Mount Behind Monitors
  • Works with Surveillance Station 7 and Onward
• Hardware:
  • Video Outputs:
    • Video Output: 1x VGA, 1x HDMI
    • Video Resolution: 1080p, 60 Hz
  • Audio:
    • Input: 1x 3.5 mm Stereo Audio Jack
    • Output: 1x 3.5 mm Stereo Audio Jack
  • Port: 2x USB 2.0 Ports, 1x USB 3.0 Port
  • LAN: 1x RJ45 LAN Port
  • Power Supply Unit/Adapter: 36W
  • AC Input Power Voltage: 100 ~ 240V AC
  • Power Frequency: 50/60Hz, Single Phase
• Software:
  • Maximum IP cam: 36
  • Video Compression Format: MJPEG, MPEG-4, H.264
  • Audio Codec: PCM, ADPCM, G711, G726, AMR, AAC
  • Live View / Recording Playback
  • Snapshot Support
  • eMap Support
  • PTZ Control / Patrol
  • Log Viewer
• Power Consumption: 4.76W (24ch full-load); 3.61W (Power on Idle)
• Certifications: FCC Class B, CE Class B, BSMI Class B, EN50155, EN45545
• Dimensions: 32.0 x 130.0 x 130.0 mm
• Weight: 0.3 kg
• Package Contents: Main Unit, Quick Installation Guide, AC Power Adapter, RJ-45 LAN Cable, VESA mounting kit
• RoHS Compliant
