Specifications

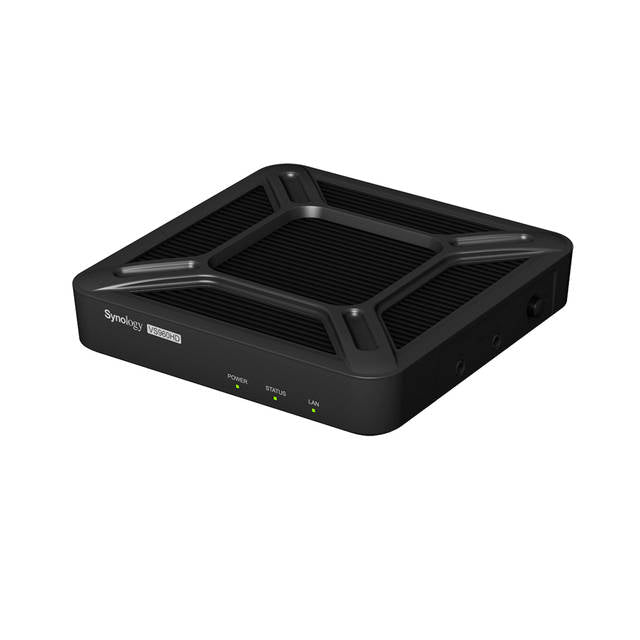

• Mfr Part Number: VS960HD

• Features:
  • PC-less Surveillance Management Solution
  • Robust and certified hardware for harsh environments

  • Ideal for TV wall setup

  • Convenient live view and playback interface

• Hardware:
  • Video Outputs:
    • Video Output: 2x HDMI

    • Video Resolution: HDMI 1 - 4K (3840 x 2160, 30Hz/60Hz); HDMI 2 - 1080p (1920 x 1080, 60Hz)
  • Audio:
    • Input: 1x 3.5 mm Stereo Audio Jack
    • Output: 1x 3.5 mm Stereo Audio Jack
  • Port: 2x USB 2.0 Ports, 1x USB 3.0 Port
  • LAN: 1x RJ45 LAN Port

  • Power Supply Unit/Adapter: 36W

  • AC Input Power Voltage: 100 ~ 240V AC
  • Power Frequency: 50/60Hz, Single Phase

• Software:
  • Maximum IP Cam: 96

  • Video Codec: MJPEG, MPEG-4, H.264, H.265

  • Audio Codec: PCM, G711, G726, AMR, AAC
  • Live View / Recording Playback
  • Snapshot Support
  • eMap Support
  • PTZ Control / Patrol

  • Log Viewer

• Power Consumption: 7.2W (96ch full-load); 4.9W (Power on Idle)

• Certifications: FCC Class B, CE Class B, BSMI Class B, EN50155, EN45545

• Dimensions: 32.0 x 130.0 x 130.0 mm

• Weight: 0.38 kg

• Package Contents: Main Unit, Quick Installation Guide, AC Power Adapter, RJ-45 LAN Cable, VESA mounting kit

• RoHS Compliant
