Specifications

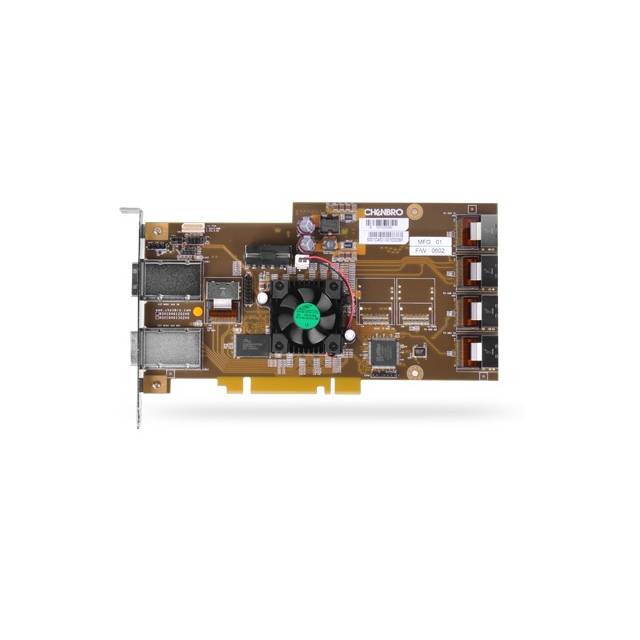

• Mfr Part Number: CK22803

• Features:
  • Built-in LSI SASIIX28 6Gb/s SAS Expander Controller
  • Supports up to 16 SAS/SATA HDD in directly connection
  • Supports two external SFF-8088 connectors for daisy chain connection
  • Supports HDD failure and activity indication and HDD ID mapping
  • Mechanical fitting compatible with PCI-e 4x, 8x, 16x and PCI slots

  • Firmware upgradeable through RS-232 interface
  • 4 pin power connector to power from PSU cable
• Chipset: LSI SASIIX28

• Internal Ports:
  • Input from SAS HBA / RAID Card: 4-port (1x Mini-SAS)
  • Output to Backplane: 16-port (4x Mini-SAS)
• External Ports:
  • Input from Host: 4-port (1x Mini-SAS)
  • Output to JBOD: 4-port (1x Mini-SAS)
• Support OS: Windows Server 2003, Windows Server 2008, Red Hat 5.0, Cent OS 5.3, FreeBSD, Ubuntu 9.04

• Cable Options: SFF-8087 to SFF-8087 Mini-SAS cable 600 mm, SFF-8088 to SFF-8088 External Mini-SAS cable 860 mm

• Power Dissipation: 12 Watts
• Dimensions (WxL): 106.7 x 195.0 mm
