Specifications

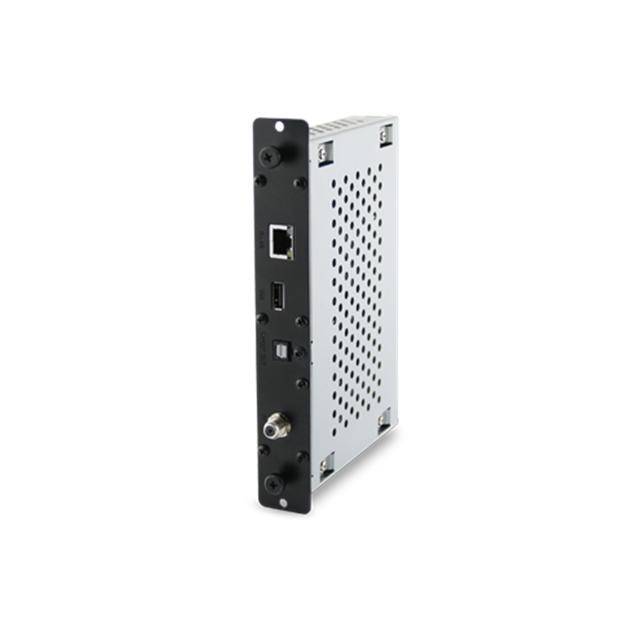

• Mfr Part Number: SB-03TM
• TV:
  • System: ATSC/Clear QAM
  • Channel Coverage:
    • ATSC (8VSB): 2 ~ 69 ch
    • Digital Cable (Clear 64/256 QAM): 1 ~ 135 ch
• Format Decoding:
  • Video:
    • MPEG-2 MP @ HL and MP @ ML
    • H.264/AVC main and high profile to level 4.1
    • VC-1 advanced profile @ level 3
    • VC-1 simple and main profile
  • Audio:
    • AAC LC, AAC LC+SBR Level 2, AAC+Level 2, AAC+Level 4
    • Dolby Digital, Dolby Digital Plus
    • MPEG I Layer1, 2, 3
    • Windows media audio
• IPTV:
  • Streaming Type: Unicast, Multicast
  • Network Protocol: Ethernet IEEE 802.3 TCP/IP, UDP/IP, IPv4, HTTP 1.1, DNS Client, DHCP Client
  • Streaming Protocol: RTP (Real-time Transport Protocol)
  • Multicast Protocol: IGMP v2/v3
• Interface:
  • Antenna Input: F Type Connector
  • Audio Output: Digital Audio S/PDIF Optical Connector
  • Ethernet: RJ45 Ethernet Port (10/100 Mbps Fast Ethernet)
  • USB:
    • USB 2.0 Type A (for USB Flash Drive)
    • Load Current: Maximum 0.5A
    • USB Flash Drive Requirements: Capacity - 512MB ~16GB; File System - FAT, FAT32; Allocation Unit Size - 2KB ~ 64KB
• OSD Language: English/ French/ Spanish
• Power Supply: +16VCD (from option slot interface)
• Power Comsumption: 5.8W
• Complied Regulatory and Guidelines: FCC - Class B, BETS-7
• Dimensions (WxDxH): 180.0 x 119.0 x 30.0 mm
• Weight: 0.6 kg
