Specifications

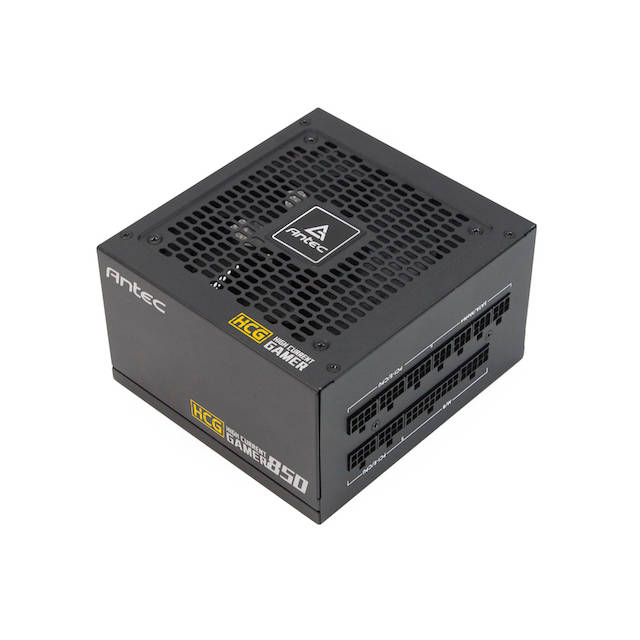

• Mfr Part Number: HCG850 GOLD
• Features:
  • Guaranteed 850W of Continuous Power from Antec
  • 100% Modular - Improve airflow and reduces clutter
  • 80 PLUS GOLD certified - Up to 92% efficient, to reduce your electricity bill
  • PhaseWave Design - A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
  • Antec Quality 10-year warranty and lifetime global 24/7 support
  • 120mm FDB Silence - Whisper-quiet high-quality fluid-dynamic bearing fan with long lifetime
  • Zero PRM Manager - An advanced low voltage fan control with fan-off mode at low loads for absolute silence
  • 99%+12V - Output for maximum CPU & GPU support
  • CircuitShield - Full suite of industrial grade protections: OCP, OVP, UVP, SCP, OPP, SIP, NLO
  • 100% Japanese capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system's performance
  • 28(18+10) pin MBU socket - For possible future MBU connectors
  • ATX12V 2.4 - Engineered according to the newnest PSU guideline and compatible with the latest CPU generation
  • Compact size 140mm depth power supply is the best choice for compact ATX chassis
• Maximum Power: 850 W
• Input:
  • Voltage: 100 - 240 VAC ± 10%
  • Current: 12 - 6 A
  • Frequency Range: 50 - 60 Hz
• Type: ATX 12V 2.4
• Power Factor Correction: Active PFC (>0.9 typical)
• Efficiency: 92% Typically
• Fan: 1x 120 mm FDB Fan
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 70A, -12V @ 0.3A, +5Vsb @ 3.0A
• Connectors: 1x 24(20+4)pin Main Power Connector, 2x 8(4+4)pin EPS12V Connectors, 6x 8(6+2)pin PCI-Express Connectors, 10x SATA Connectors, 5x Molex Connectors, 1x FDD Connector
• Regulatory: cTUVus/TUV/CB/RCM/CE/EAC/CCC/BSMI/FCC/KR
• Dimensions (WxLxH): 150.0 x 140.0 x 86.0 mm
• Weight: 2.46 kg
