Specifications

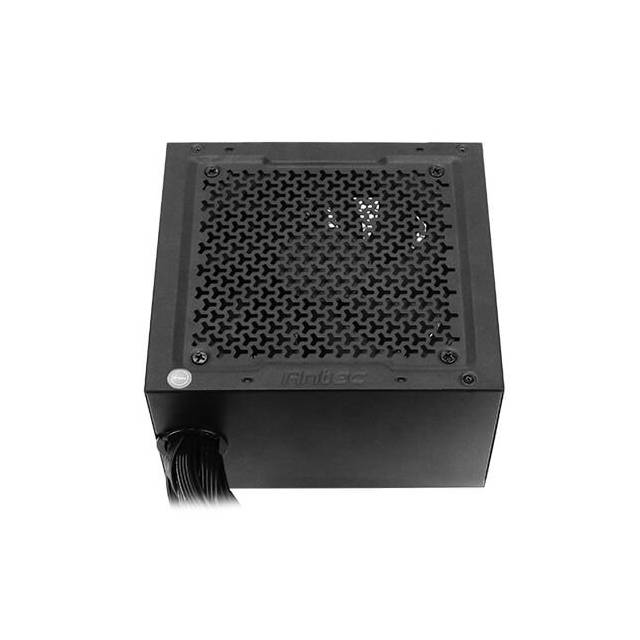

• Mfr Part Number: NE500G ZEN
• Product description:NeoECO Gold ZEN The new NeoECO Gold ZEN series features high performance with an 80 PLUS Gold rating, achieving up to 92% efficency and gives you savings unheard of from other power supplies.  SPECIFICATIONS: 500W Continuous Power - Guaranteed Continuous Power from Antec 80 PLUS® GOLD certified - Up to 92% efficient, to reduce your electricity bill AQ5 - Antec Quality 5 year warranty and lifetime global 24/7 support 120 mm Silence - Whisper-quiet high-quality fan with long lifetime CircuitShield - Full suite of industrial grade protections Japanese Heavy-duty Caps - High-performance capacitors ensure tightest DC stability and regulation LLC + DC to DC Design - Design with a synchronous rectification based on a DC-DC topology
• Features:
  • 500W Continuous Power - Guaranteed Continuous Power from Antec


  • 80 PLUS® GOLD certified - Up to 92% efficient, to reduce your electricity bill


  • AQ5 - Antec Quality 5-year warranty


  • 120mm Silent Fan - High-quality fan with long lifetime


  • 99% + 12V - Output for maximum CPU & GPU support


  • CircuitShield - Full suite of protection management


  • LLC + DC to DC Design - Design with a synchronous rectification based on a DC-DC topology

  • 100% Japanese Heavy-Duty Caps

• Model : NE500G Zen

• Type : ATX 12V 2.4

• Modular : ¼

• Dimension : 140(L) x 150(W) x 86(H)

• Warranty : 5 years

• Input Voltage : 100-240 VAC

• Input Current : 6A-3A

• Input Frequency Range : 50Hz-60Hz

• PFC : Active PFC

• Power Good Signal : 100-500ms

• Efficiency : Up To 92%

• Protection : OCP/OVP/UVP/SCP/OPP/NLO

• Output Capacity : 500W

• Operation Temperature : 0~40°C

• Regulatory : cTUVus/TUV/CB/RCM/CE/CCC/BSMI/FCC

• Fan : 120mm Silence Fan

• Certifications : 80 Plus Gold

• Connector :

  • 1 x MB 24(20+4) Pin

  • 1 x 8(4+4) Pin EPS 12V

  • 2 x 8(6+2) Pin PCI-E

  • 6 x SATA

  • 2 x Molex

• Net Weight : 1.68 Kgs

• Gross Weight : 2.05 Kgs
