Specifications

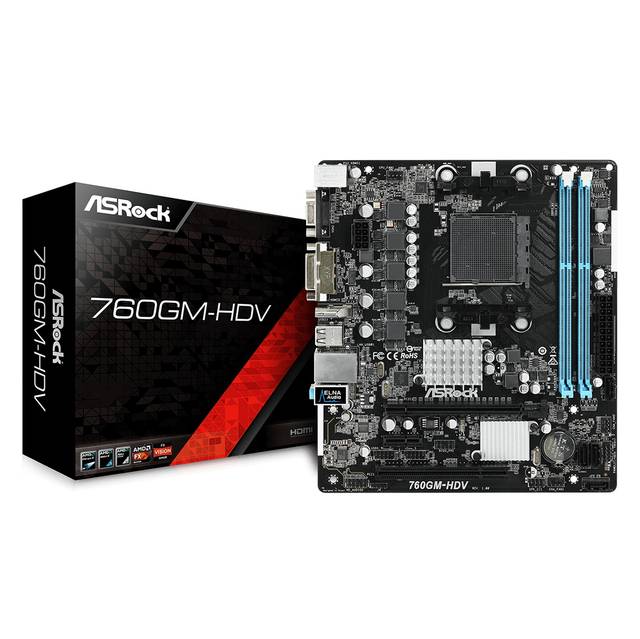

• Mfr Part Number: 760GM-HDV
• CPU: Socket AM3+/AM3
  • Supports Socket AM3+ processors
  • Supports Socket AM3 processors - AMD Phenom II X6/ X4/ X3/ X2 (except 920 / 940)/ Athlon II X4/ X3/ X2/ Sempron processors
  • Supports 8-Core CPU
  • Supports AMD OverDrive with ACC feature (Advanced Clock Calibration)
  • Supports CPU up to 125W
  • Supports AMD's Cool 'n' Quiet Technology
  • Supports Untied Overclocking Technology
  • Supports Hyper-Transport 3.0 (HT 3.0) Technology
• Chipset: North Bridge AMD 760G & South Bridge AMD SB710
• Memory: 2x DDR3-1800(OC)/ 1600(OC)/ 1333/ 1066 DIMM Slots, Dual Channel, non-ECC, un-buffered, Max Capacity of 32GB
• Slots: 1x PCI-Express 2.0 x16 Slot, 1x PCI-Express 2.0 x1 Slot, 1x PCI Slot
• SATA: 4x SATA2 Ports, Support RAID 0, 1, 10, JBOD
• Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC
• Video: Integrated AMD Radeon 3000 Graphics w/ 1GB Max Shared Memory
• LAN: Realtek RTL8111H PCI-Express x1 Gigabit Ethernet Controller
• Ports: 8x USB 2.0 Ports (4 rear, 4 via headers), 1x PS/2 Mouse Port, 1x PS/2 Keyboard Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port with LED, Audio I/O Jacks
• Power Connector: 1x 24 pin ATX Power Connector, 1x 8 pin 12V Power Connector
• Form Factor: MicroATX, 8.6 x 7.6 inch / 21.8 x 19.3 cm
