Specifications

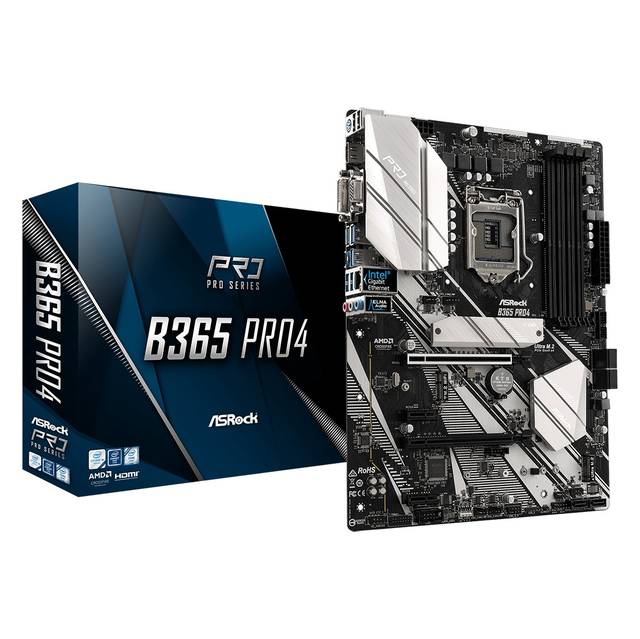

• Mfr Part Number: B365 PRO4
• CPU: LGA1151
  • Supports 9th/ 8th Generation Intel Core Processors
  • Supports CPU up to 95W
  • Digi Power design
  • 8 Power Phase design
  • Supports Intel Turbo Boost 2.0 Technology
• Chipset: Intel B365
• Memory: 4x DDR4-2666/ 2400/ 2133 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GB
• Slots: 2x PCI-Express 3.0 x16 Slots (single at x16; dual at x16/ x4), 2x PCI-Express 3.0 x1 Slots (Flexible PCIe)
• Multi-Graphics: Supports AMD Quad CrossFireX and CrossFireX Technology

• Storage:
  • SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10, Intel Rapid Storage Technology 17, NCQ, AHCI and Hot Plug
  • M.2: 2x Ultra M.2 Ports (M Key), one supports type 2230/ 2242/ 2260/ 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s); one supports type 2230/ 2242/ 2260/ 2280/ 22110 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

• Audio: Realtek ALC892 7.1-Channel High Definition Audio CODEC with Content Protection

• LAN: Giga PHY Intel I219V Gigabit Ethernet Controller
• Ports: 8x USB 3.1 Gen 1 Ports (1 Type-C rear, 5 rear, 2 via Header), 5x USB 2.0 Ports (2 rear, 3 via Header), 1x PS/2 Keyboard/Mouse Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port with LED, Audio I/O Jacks
• Power Connector: 1x 24-pin ATX Power Connector, 1x 8-pin 12V Power Connector

• Form Factor: ATX, 12.0 x 9.0 inch / 30.5 x 22.9 cm
